P10

1ch fullrange AB – punchy rich bass, narrow bass boost 45Hz & cooling fan, HLC, active crossover

Specifications

Channels	Mono
Amplifier class	AB
Power RMS (2 Ohm)	1x450W
Power RMS (4 Ohm)	1x260W
S/N ratio	>95 dB
Freq.range	10 – 30 000 Hz
Input Sensitivity	0,25 – 5V
Low Pass Filter	50 – 200 Hz
Dimension (W x D x H)	189 x 322 x 51 mm
Weight	3 kg

Description

Single mono full range amplifier for use with subwoofers or high-power satellite systems. Class A/B configuration provide warm and deep bass with both details and raw power.

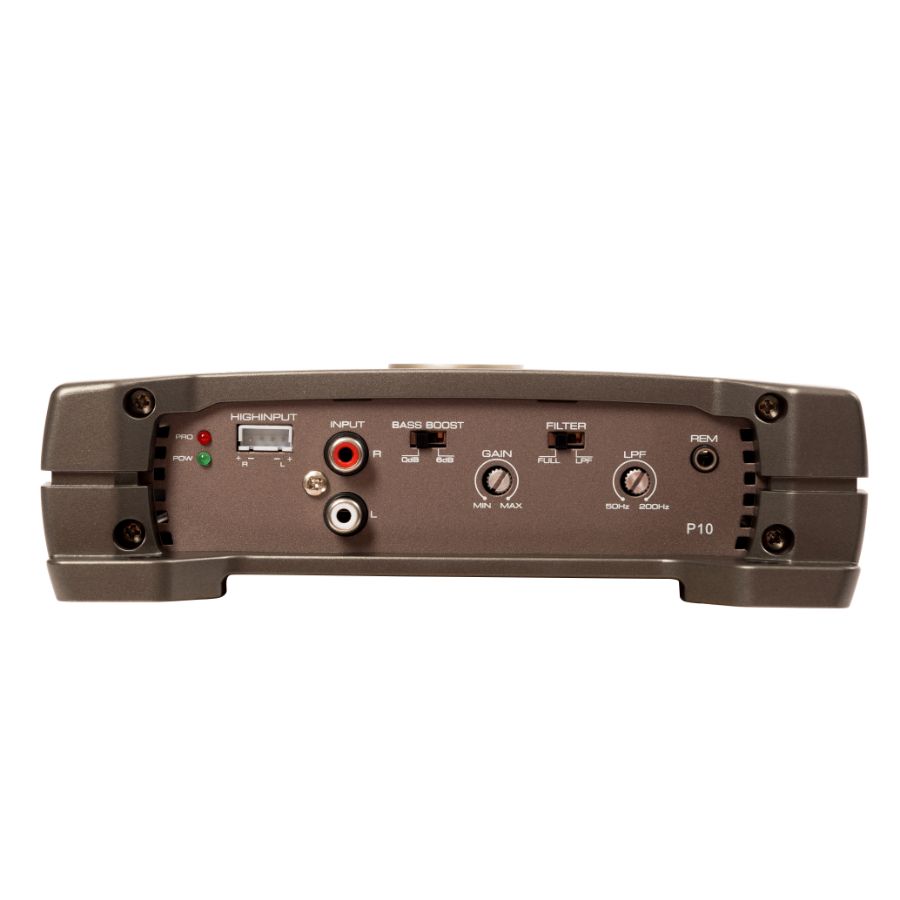

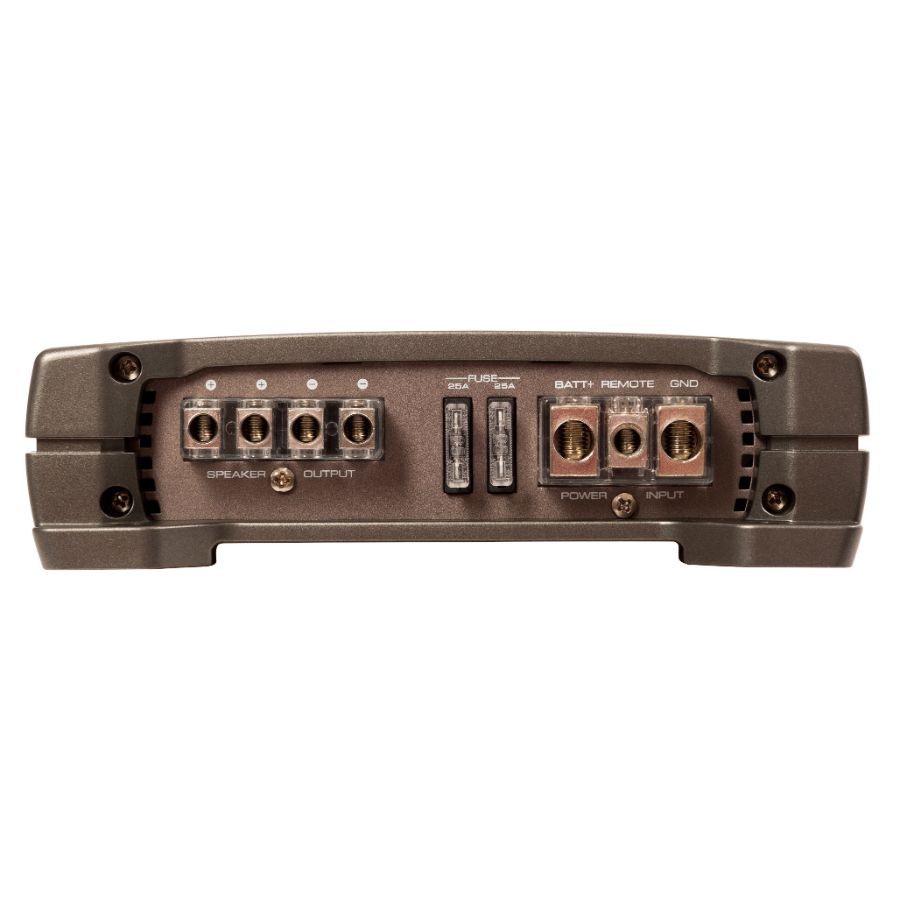

Advanced noise rejecting high level input for direct connection to factory radios. Auto start on high level input and oversized power and speaker cable terminals & regulated cooling fan. Variable Low pass filter & +6 dB dynamic bass EQ centered at 50 Hz. EBC – External bass control unit included.

Damping factor >80

Input impedance 22 kohm

Input impedance, high level 47 ohm

Bass boost @ 50 Hz – +6dB

Cooling fan in bottom plate – Yes

Remote sub level control – Yes

High level input with auto start Yes

Power consumption (idle) 0,5 A

Power consumption (max) 50 A

Specifications

Channels	Mono
Amplifier class	AB
Power RMS (2 Ohm)	1x450W
Power RMS (4 Ohm)	1x260W
S/N ratio	>95 dB
Freq.range	10 – 30 000 Hz
Input Sensitivity	0,25 – 5V
Low Pass Filter	50 – 200 Hz
Dimension (W x D x H)	189 x 322 x 51 mm
Weight	3 kg
