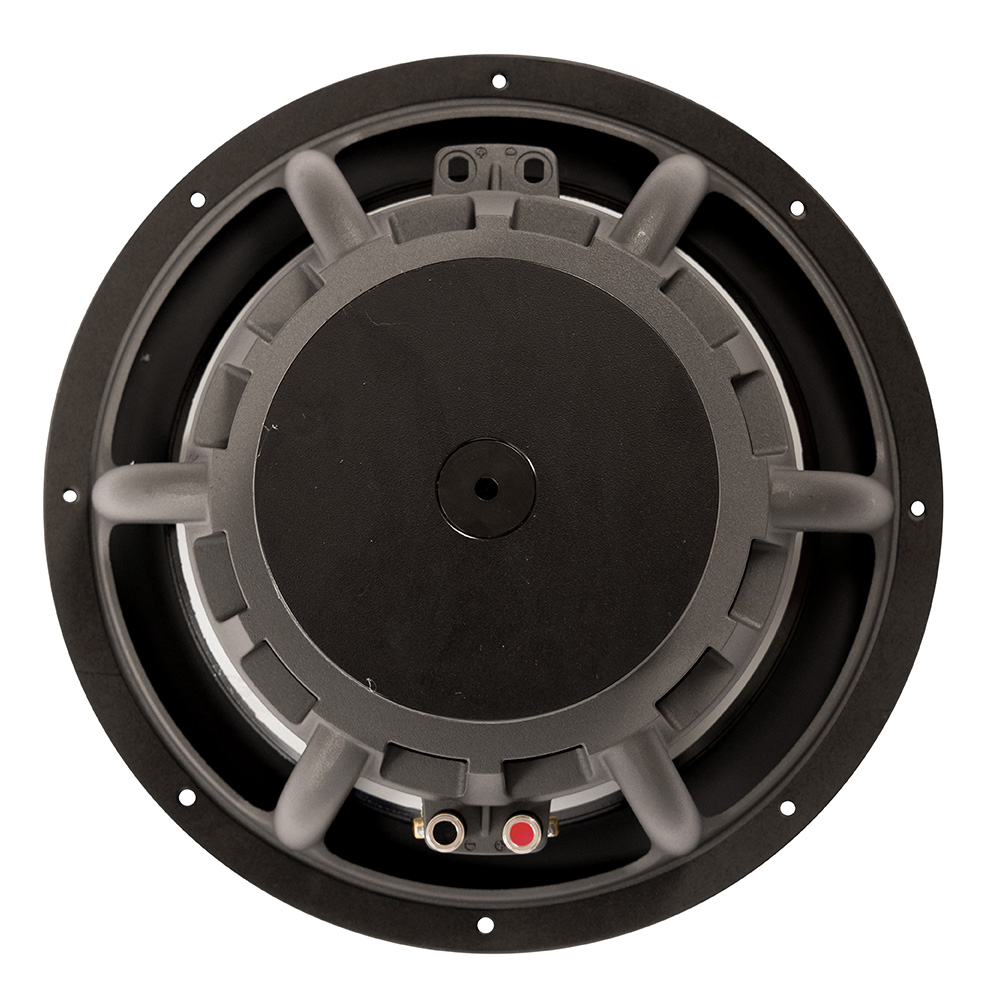

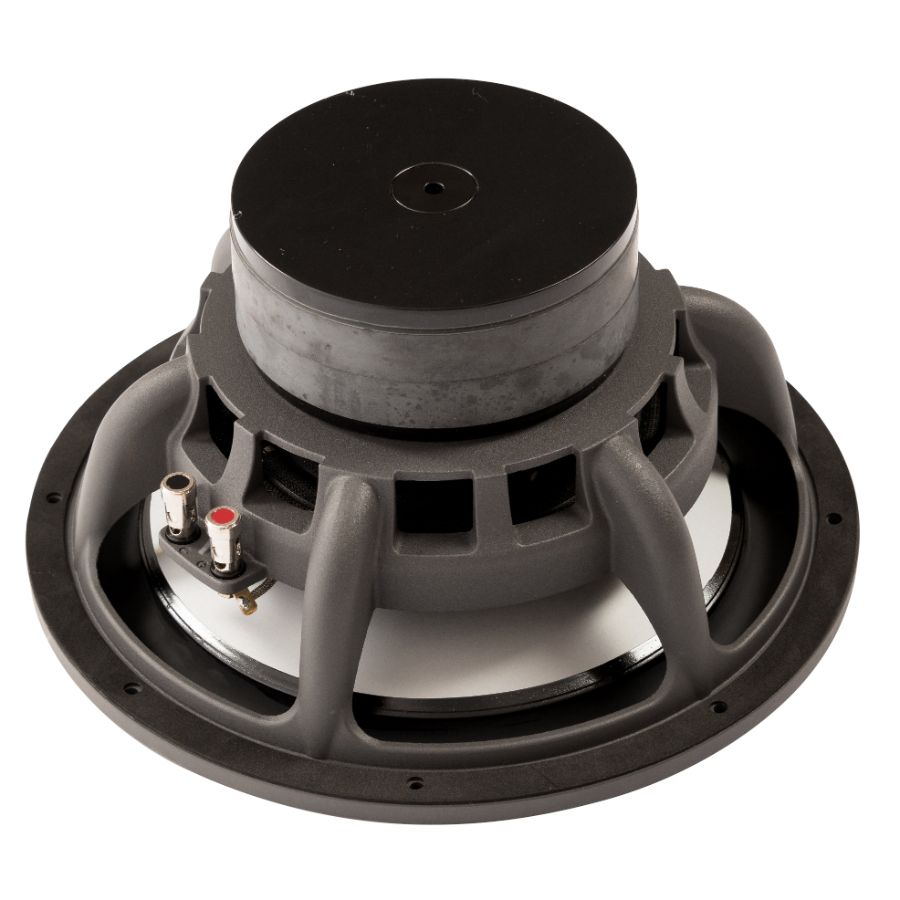

Nordica12i

Our true SQ competition subwoofer, the best we ever made!
DLS custom cast basket with an aluminum cone body and wide surround.
Very powerful Balanced Drive technology with copper rings for lower distortion and extremely detailed low bass reproduction. For airtight sealed box only 28 ltr (1 cu ft).
Comes in a black Ammo-style wooden crate.

Woofer size 12″ (30 cm)
Impedance 4 ohm
Power handling capacity 300 W RMS
Max power handling capacity 800 W RMS
Peak power 1000 W
Frequency range 20-2500 Hz
Sensitivity 89,7 dB (1W/1m)
Magnet size 144 mm (5,7″)
Outer diameter of woofer 315 mm (12,4″)
Mounting depth 148 mm ( 5,8″)
Mounting hole 282 mm (11,1″)
X-max +- 11,5 mm (0,45″)
Weight 7,2 kg (15,8 lb)

T/S parameters
single V/C
Fs 25,4 Hz Re 3,3 Ohm Qms 10,3
Vas 75,8 liter Vas 2,67 Cuft Qes 0,49
Qts 0,47 Sd 513 cm² BL 14,4

Download Manual
