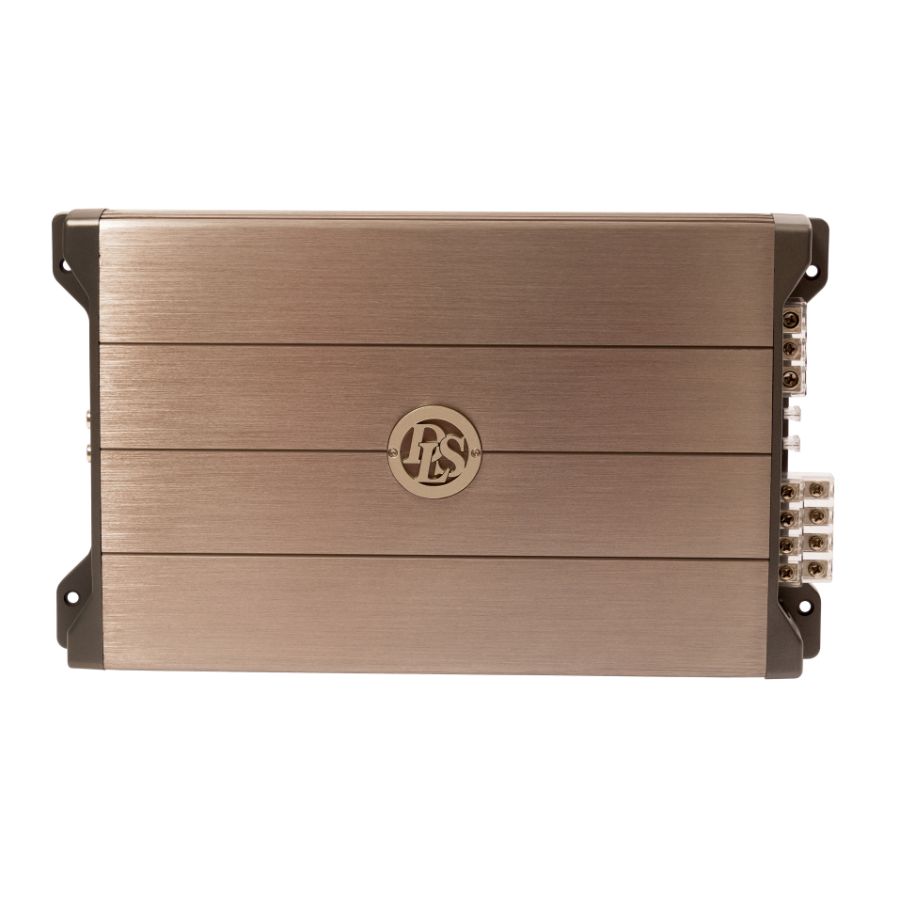

P40

Class A/B four channel amplifier. Balanced sound with fine details and raw powerful sound at an affordable price

Specifications

Channels	Four
Amplifier class	AB
Power RMS (2 Ohm)	4x100W
Power RMS (4 Ohm)	4x70W
Bridged Power RMS (4 Ohm)	2x200W
S/N ratio	>95 dB
Freq.range	10 – 30 000 Hz
Input Sensitivity	0,25 – 5V
High Pass Filter	50 – 500 Hz
Low Pass Filter	50 – 500 Hz
Dimension (W x D x H)	189 x 322 x 46mm
Weight	3 kg

Description

The 4 channel P40 is the result of DLS continued strive to supply the best sound available in each product segment. Sound tuned in England with elegance paired with powerful sound – at an affordable price.

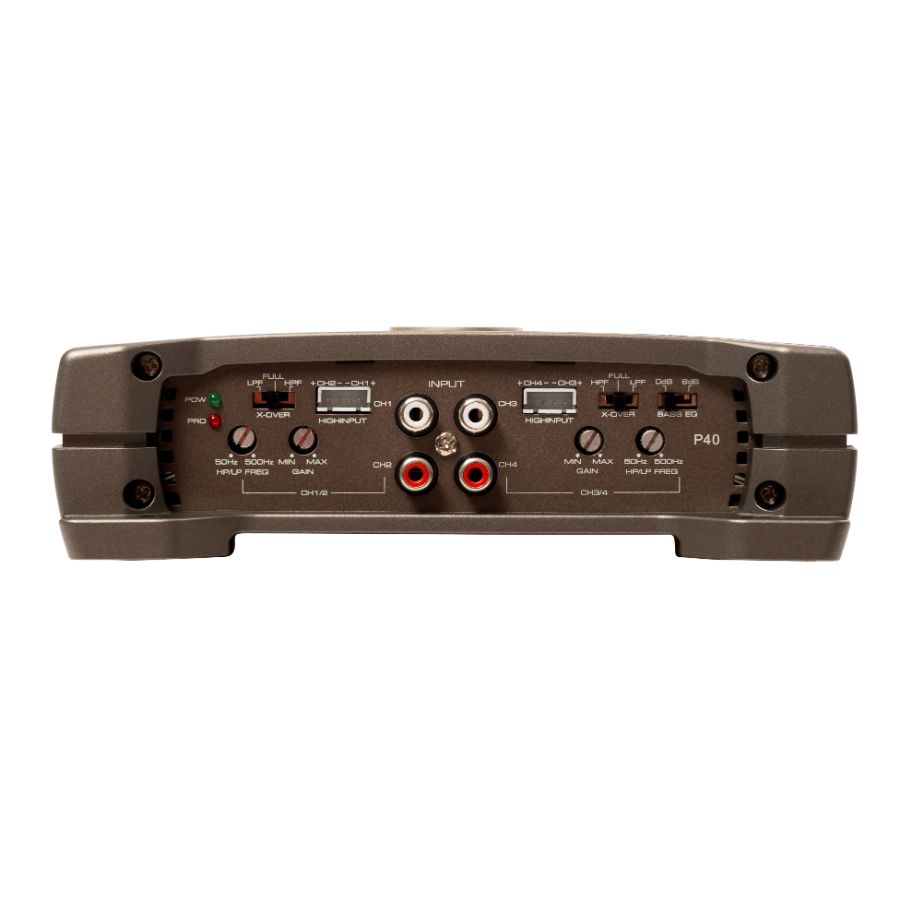

Class A/B balanced sound with fine details and raw power. Advanced noise rejecting high level input for direct connection to factory radios. Auto start on high level input and oversized power and speaker cable terminals & regulated cooling fan. Variable High and Low pass filters & +6 dB dynamic bass EQ.

Damping factor >80

Input impedance 22 kohm

Input impedance, high level 47 ohm

Bass EQ @ 50 Hz – +6 dB

Power consumption (idle) 0,5 A

Power consumption (max) 50 A

High level input with auto start Yes

Integrated fan

Fuse – 2 x 25 A

Specifications

Channels	Four
Amplifier class	AB
Power RMS (2 Ohm)	4x100W
Power RMS (4 Ohm)	4x70W
Bridged Power RMS (4 Ohm)	2x200W
S/N ratio	>95 dB
Freq.range	10 – 30 000 Hz
Input Sensitivity	0,25 – 5V
High Pass Filter	50 – 500 Hz
Low Pass Filter	50 – 500 Hz
Dimension (W x D x H)	189 x 322 x 46mm
Weight	3 kg

Download manual

Download
