PE10.D2

PE10D2

PE10.D2

PE10D2

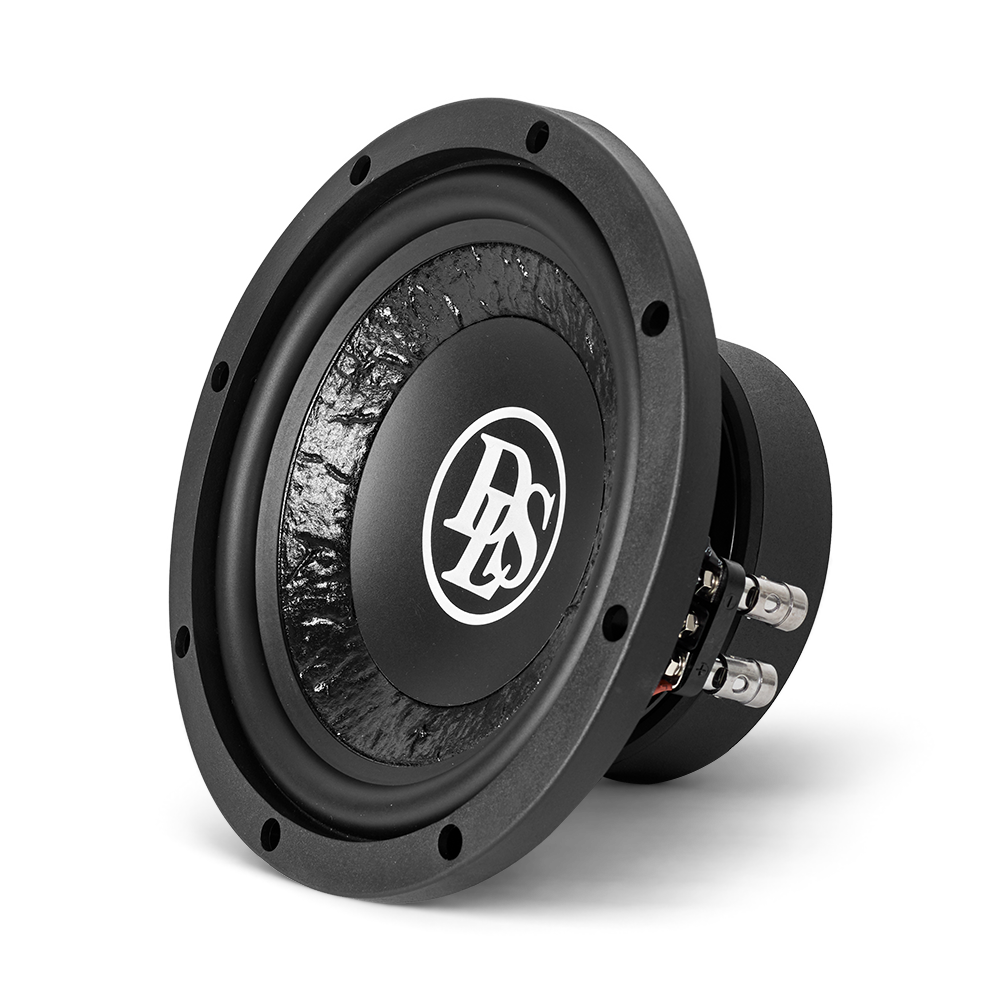

A durable 10 inch subwoofer with great performance.

Specifications

Size	10"/250mm
Impedance	2+2 Ohm
Power RMS	300W
Power MAX	600W
Sensitivity	86 dB
Voice coil size	2"/51mm
Voice coil material	4-layer copper/Kapton former
Magnet	45 Oz Ferrite
Freq.range	20 – 300 Hz
Weight	4.5 Kg

Description

The unique DLS audio experience at a great value. An upgrade with durable quality and high performance.

• Especially suited for small sealed enclosures.
• Coated non-pressed paper (NPP) cone.
• 2” Kapton® voice coils with 4-layer copper wire.
• Dual ventilation in both pole piece and basket for great thermal dissipation.
• Durable steel basket and strong ferrite motor.
• Bumped backplate for extended excursion.

PARAMETERS

Fs: 29 Hz

Re: 3.8 (1.9+1.9) Ohm

Qms: 6.42

Qes: 0.50

Qts: 0.47

Cms: 0.23 mm/N

Mms: 98.4 g

Bl: 12.9

Vas: 45 L

Sd: 359.7 cm2

Xmax: ± 9 mm

Vd: 1.5 L

Specifications

Size	10"/250mm
Impedance	2+2 Ohm
Power RMS	300W
Power MAX	600W
Sensitivity	86 dB
Voice coil size	2"/51mm
Voice coil material	4-layer copper/Kapton former
Magnet	45 Oz Ferrite
Freq.range	20 – 300 Hz
Weight	4.5 Kg

Download manual

Download

Download Specification and Datasheet

Download
