Description

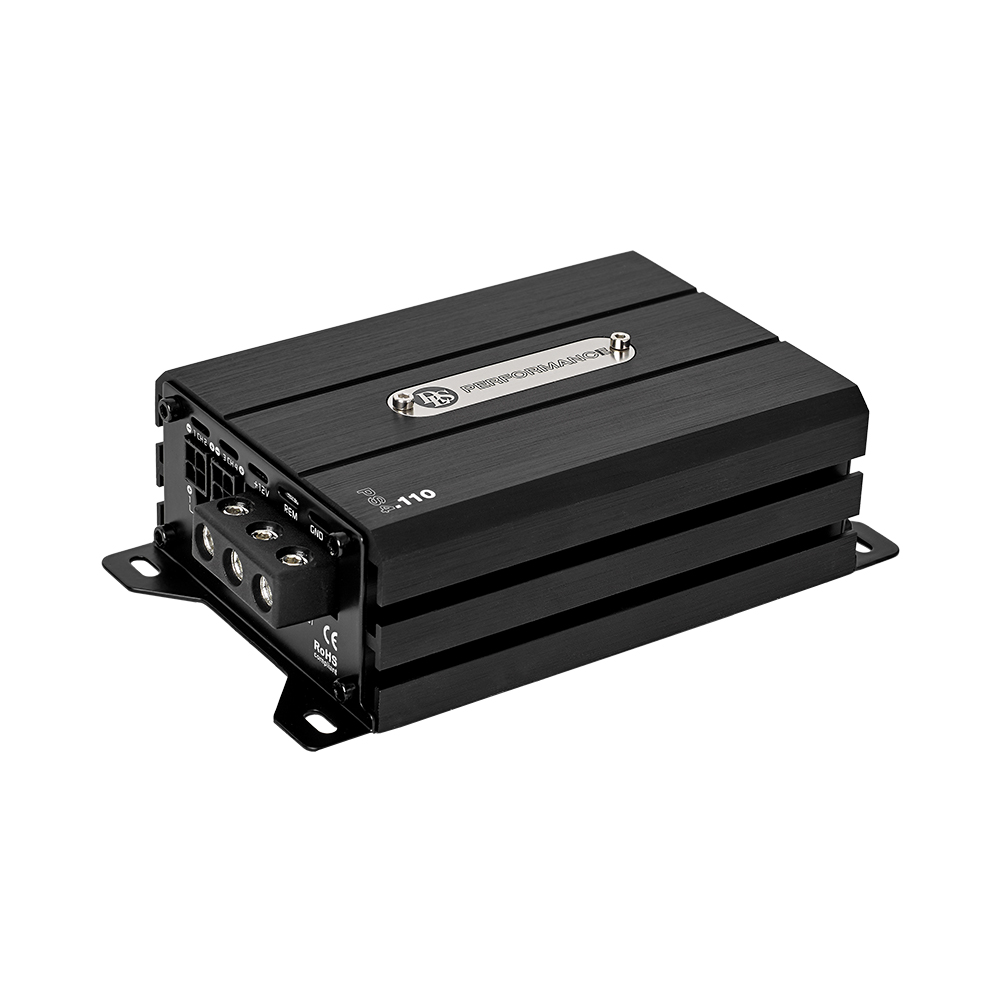

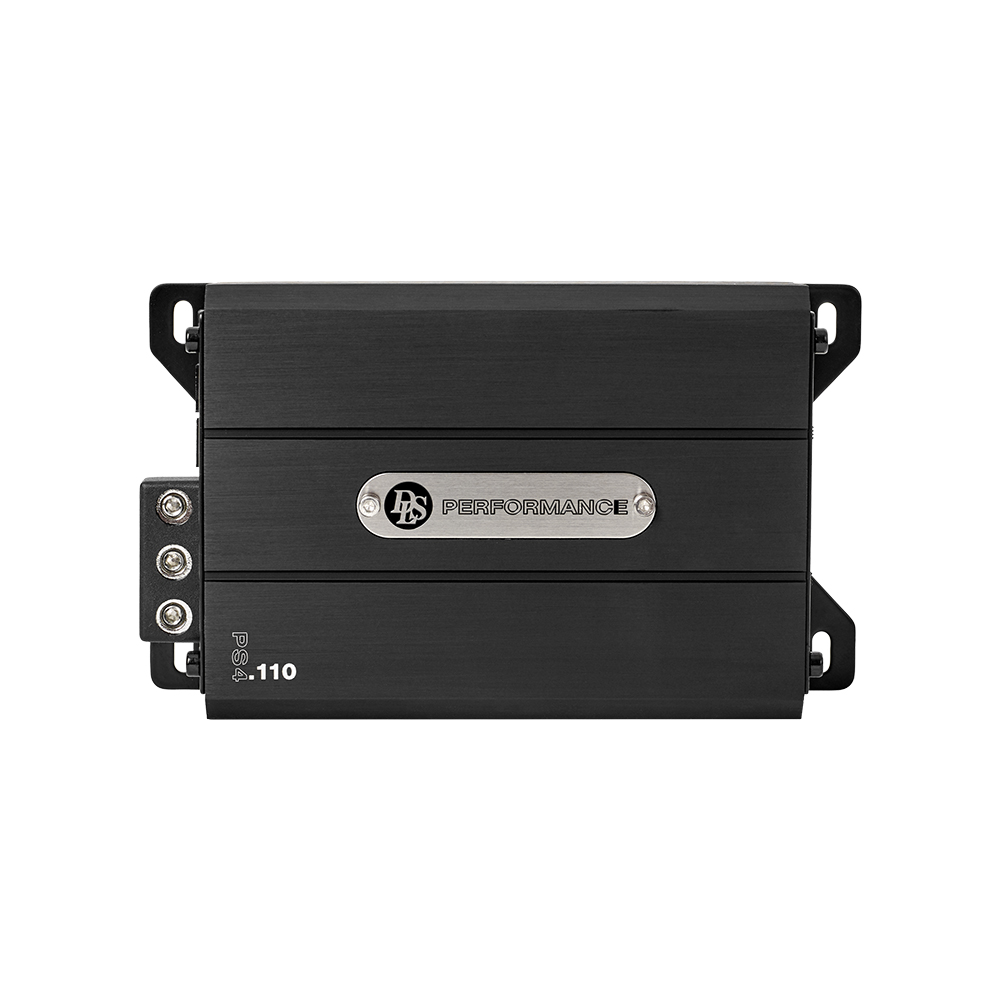

The DLS Performance Slim series proves that big things truly come in small packages. Measuring just 88 mm wide, 43 mm high, and 121 mm deep (151 mm with brackets), these amplifiers are smartphone-sized yet pack enough power to drive your favourite speakers with authority.

Precision Without Compromise
Carefully selected components minimise noise and distortion, allowing your music to flow naturally and effortlessly. It’s astonishing how something this compact can sound so good – once you hear it, there’s no going back.

Finely Tuned
A built-in bandpass crossover offers precise control, with high-pass and low-pass filters working together seamlessly. Ideal for fine-tuning a bespoke setup that’s tailored to your taste.

Reliability Down to the Last Detail
Every component is EMC-tested to ensure flawless compatibility with your vehicle’s electronics. The Performance Slim series combines long-term durability with dependable, day-in, day-out performance.

Performance You Can Trust
Borrowing advanced technology from DLS’s high-end Signature series, these amplifiers feature innovations such as Smart Load for seamless integration with modern vehicle systems. Compact in size, uncompromising in quality – the Performance Slim series delivers impeccable sound without compromise.

• Number of Channels: 4
• Amplifier Class: D
• Power Output (RMS):
  • 2 Ohms: 4×110 Watt
  • 4 Ohms: 4×70 Watt

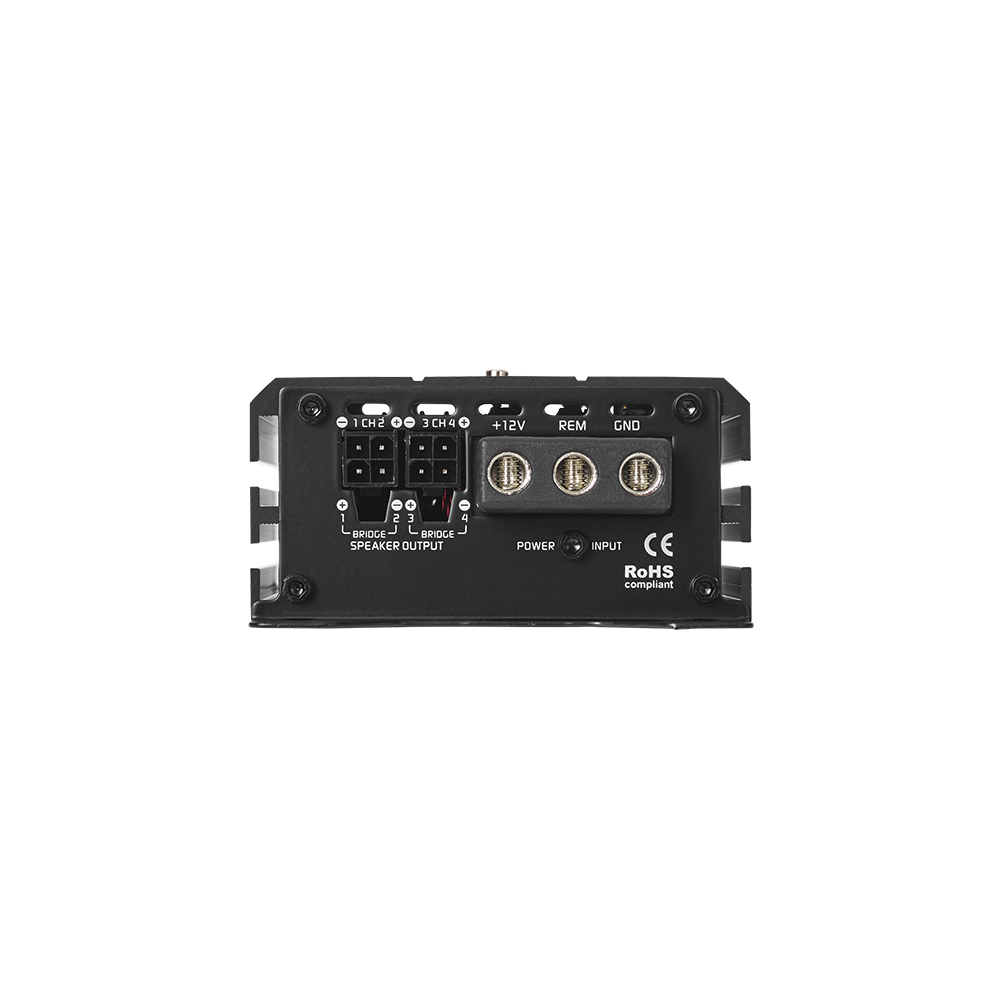

  • 4 Ohms (Bridged): 2×220 Watt
• Signal-to-Noise Ratio (A-Weighted): 93 dB
• THD @ 4 Ohms: <0.1%
• Efficiency @ 4 Ohms: 86%
• Frequency Response: 10 Hz – 40 kHz (+/-1 dB)

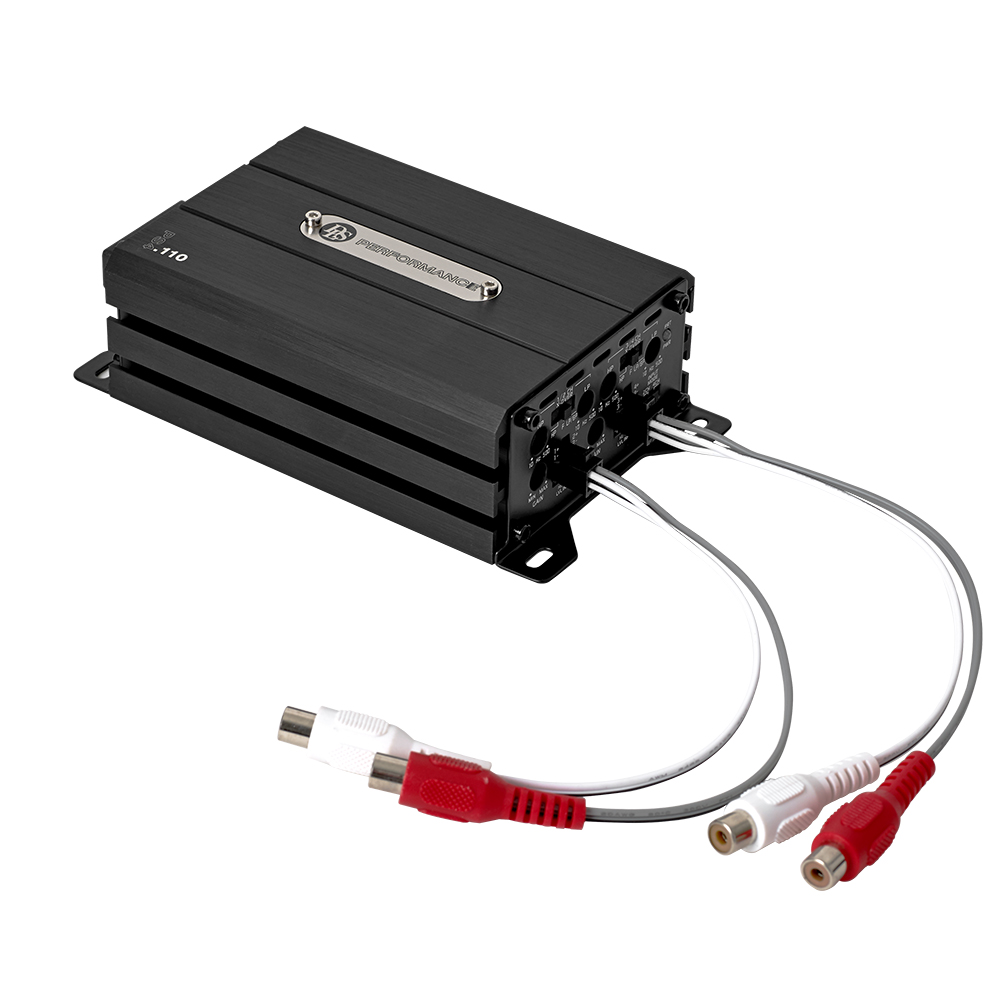

• Input Impedance (Low Level): 20k Ohm
• Input Sensitivity: 0.3V – 7V (+/-5%)

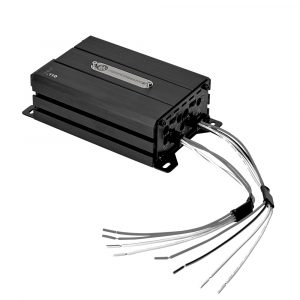

• High Level Input with Auto Start: Yes

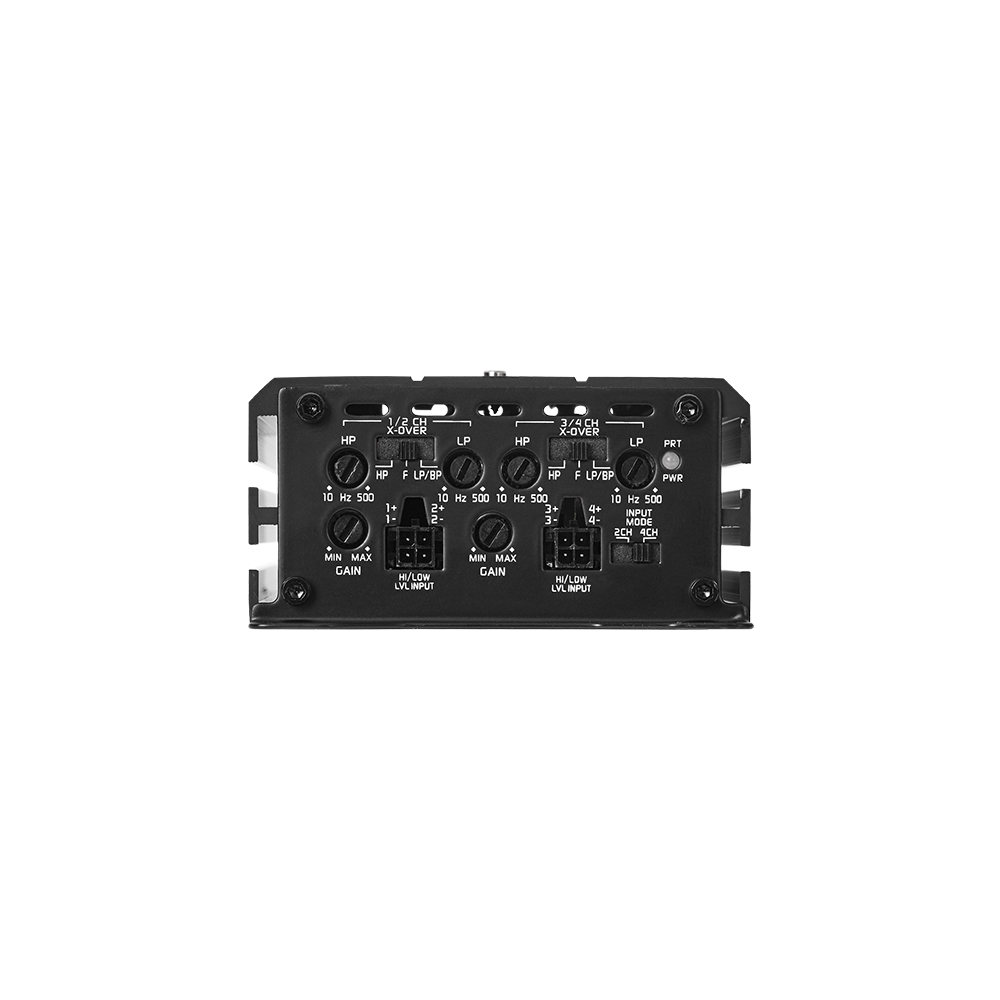

• Filters:
  • High-Pass Filter: 10 Hz – 500 Hz (Adjustable)
  • Low-Pass Filter: 10 Hz – 500 Hz (Adjustable)
• Power Consumption:
  • Idle: 0.5 A
  • Max: 40 A
  • Recommended Fuse Rating: 40 A
• Dimensions (HxWxD):
  • Metric: 44 x 88 x 161 mm
  • Imperial: 1.72 x 3.46 x 6.34 inches
• Weight: 0.6 kg
