RZ6.2Q

RZ62Q

RZ6.2Q

RZ62Q

Very powerful hybrid alumium woofer with rigid PENTA basket, 50mm wide band tweeter with low crossover frequency & resonance chamber, on axis great soundstage, tweeter level select

Specifications

Woofer	6.5"/165mm
Tweeter	2"/50mm
Power RMS	100W
Power MAX	150W
Impedance	4 Ohm
Freq.range	50 – 22 000 Hz
Sensitivity	85 dB
Magnet size	110mm
Mounting depth	75mm
Mounting hole	145mm

Description

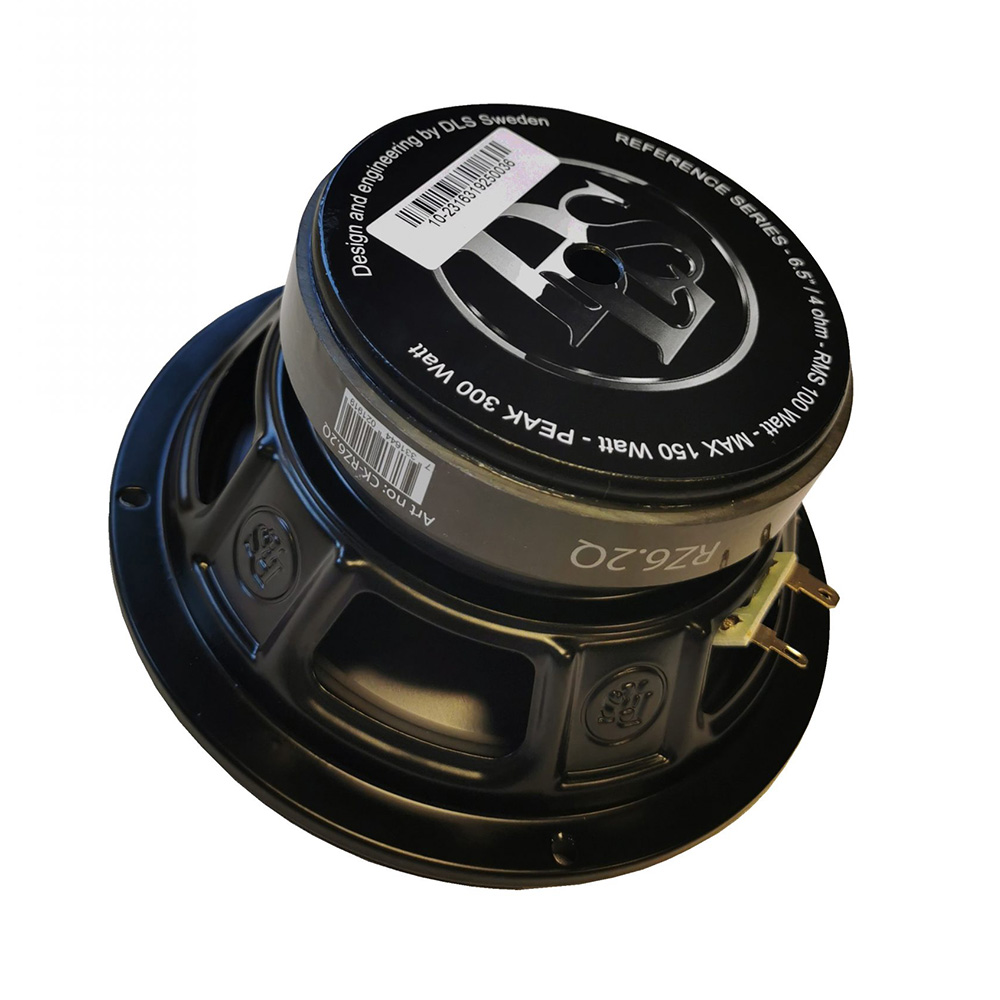

Reference series RZ6.2Q implement DLS original design, anti-vibration PENTA basket with five reinforced pillars and DLS imprinted logos.

The large magnet, aluminum cone, woofer nicely blends with a 50mm wide band tweeter through a specially tuned high-grade crossover. It enables special installations with an improved soundstage combined with bass power, clarity and warmth.

Crossover Filter box with 6/12 dB slope (LP/HP)

Crossover point (Hz) 1500 Hz

Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″)

Fs 64,2 Hz Re 3,4 Ohm Qms 7,29

Vas 6,27 liter Vas 0,22 Cuft Qes 0,88

Qts 0,79 Sd 143 cm² BL 6,59

Specifications

Woofer	6.5"/165mm
Tweeter	2"/50mm
Power RMS	100W
Power MAX	150W
Impedance	4 Ohm
Freq.range	50 – 22 000 Hz
Sensitivity	85 dB
Magnet size	110mm
Mounting depth	75mm
Mounting hole	145mm

Download manual

Download
