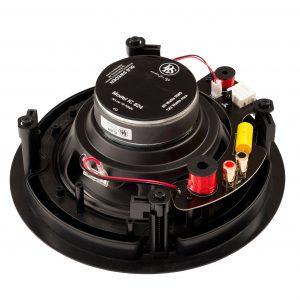

IC824

In-ceiling , 8 inch, magnet frame, pair

A popular 8” model that creates a good bass and has now been improved with a new design. The frame around the speaker is slim to give an exclusive look. The sound quality is still of the highest quality that have been our best selling point throughout the years.

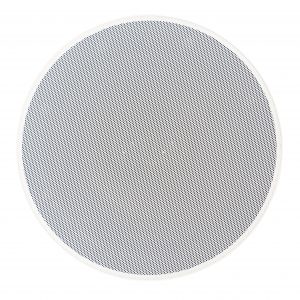

The front grille is attached to the frame with neodymium magnets.

Description / type – 16,5 cm / 6,5″ coaxial speaker
Impedance – 4 ohm
Power handling capacity – 80 W RMS, 120 W max
Sensitivity – 90 dB (1W/1m)
Frequency range – 42 – 20 000 Hz
Recommended amplifier – 20-120 Watt
Tweeter – 2 x 20 mm soft dome tweeters
Woofer size – 20 cm (8″)
Cone material – Polypropylene with rubber surround
Outer dimensions – 280 mm /11″
Cutout dimensions – 245 mm / 9,65″
Mounting depth – 110 mm / 4,33″
Off-axis angle – +- 45 degrees in distributed audio systems
Baffle thickness – 10-33 mm
Finish / colour – White
Weight – 2,3 kg / 5,07 lbs
