IW 2.6

In-wall speaker 6,5 inch+1 inch,magnet frame,pair

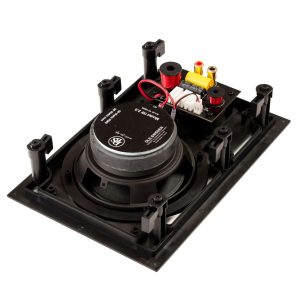

The square IW2.6 is normally installed in a wall, but can be installed wherever you require good sound. These are 2-way component kits with the tweeter separated from the bass/ mid-range to provide the best possible sound. We strongly recommend these if you’re using them in your home cinema system.

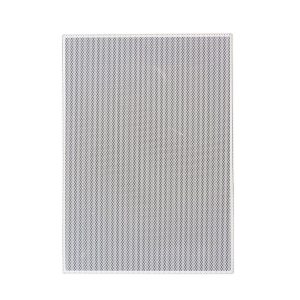

The front grille is attached to the frame with neodymium magnets.

Description / type – 2-way square speaker
Impedance – 4 ohm
Power handling capacity – 60 W RMS, 90 W max
Sensitivity – 89 dB (1W/1m)
Frequency range – 50 – 23 000 Hz
Recommended amplifier – 20-90 Watt
Tweeter – 25 mm soft dome
Woofer size – 16,5 cm / 6,5″
Cone material – Paper with rubber surround
Outer dimensions – 305 x 218 mm / 12 x 8,6″
Cutout dimensions – 272 x 185 cm / 10,7 x 7,28″
Mounting depth – 75 mm / 2,95″
Off-axis angle – +- 45 degrees in distributed audio systems
Baffle thickness – 10-40 mm / 0,4 – 1,58″
Finish / colour – White with black frame
Weight – 1,9 kg / 4,18 lbs

Download Manual
