RC25

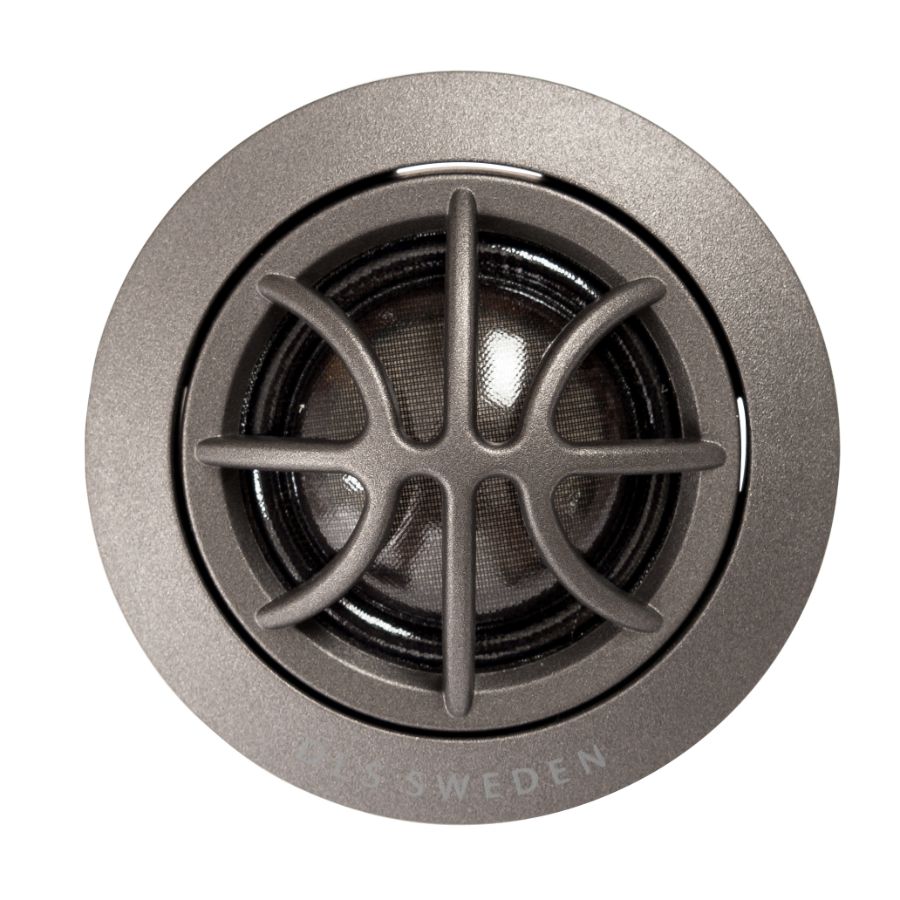

A very good tune-up for your speaker set, the 25 mm silk dome tweeter with copper rings provide very smooth and clear treble sound.

Both high quality HP 4Khz crossover and

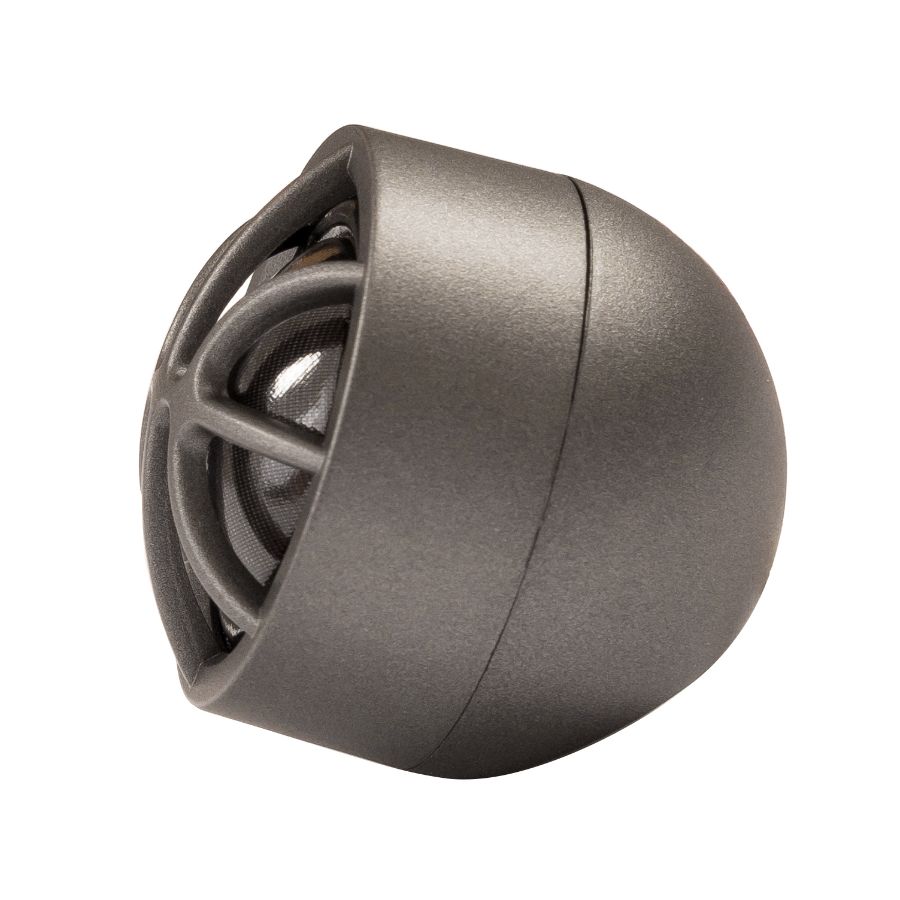

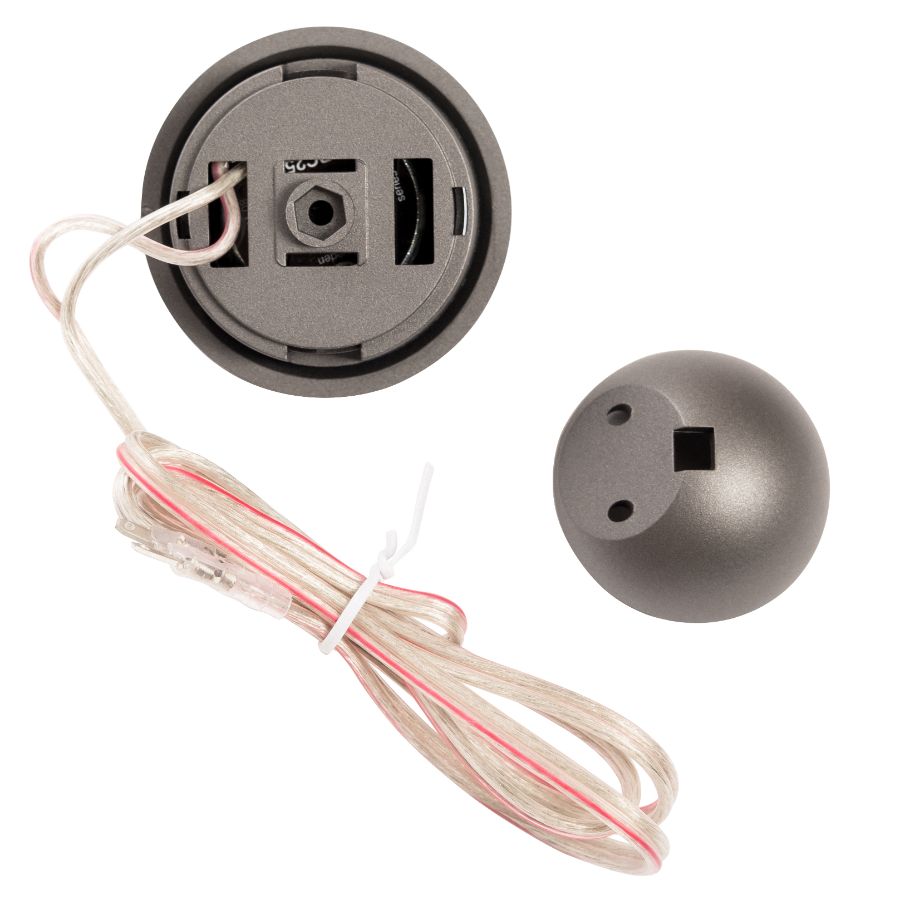

angled/recessed mounting cups included.

Impedance 4 ohm
Power handling capacity 50 W RMS
Max power handling capacity 80 W
Frequency range 1.500 – 22.000 Hz
Fs – Resonant frequency 1400 Hz
Rec. crossover point 4 – 6 kHz
Sensitivity 93 dB (1W/1m)
Magnet size 30 mm (1,18″) neodymium
Outer diameter 43 mm (1,7″)
Mounting depth 20 mm ( 0,8″)
Mounting hole 46 mm (1,81″)

Download Manual
