M369

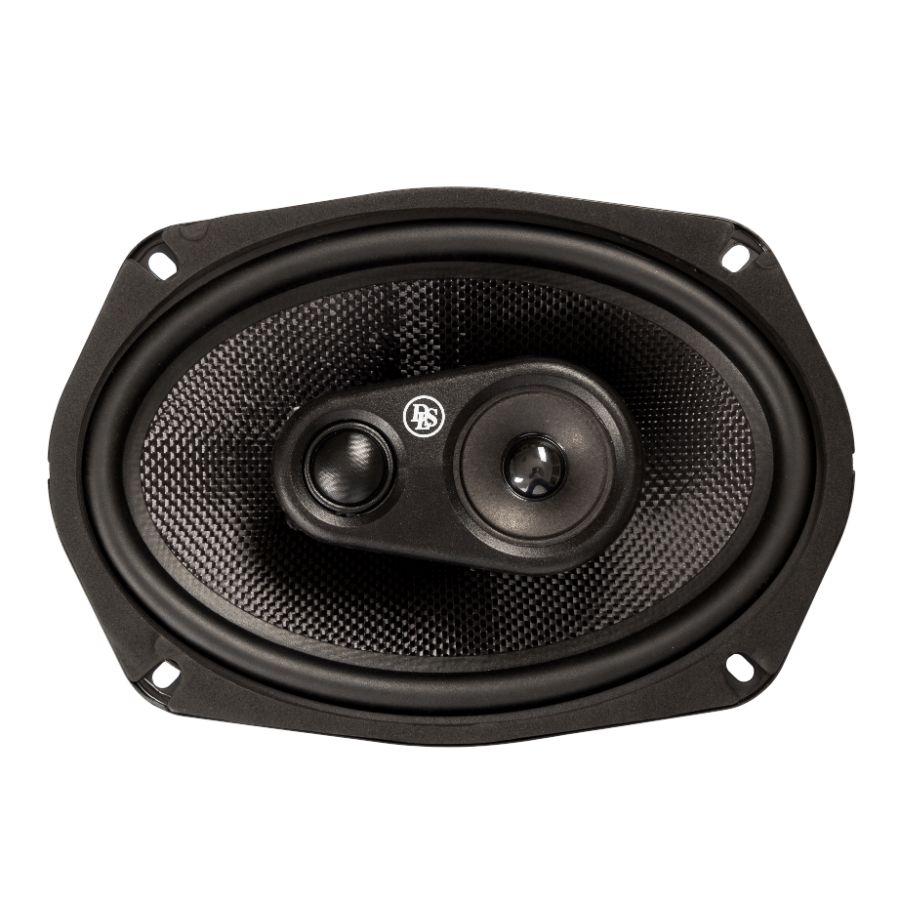

Performance series M369 is a very appreciated 3-way 6 x 9” with 2” mid driver and a 25 mm silk dome tweeter.

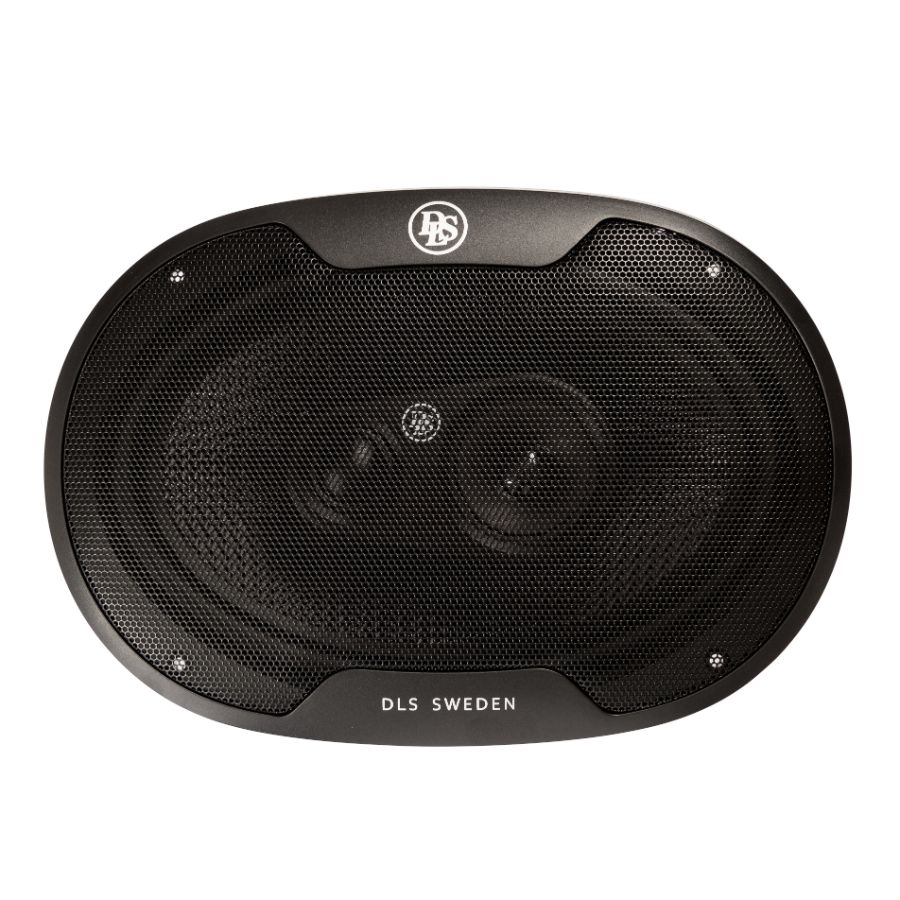

The woven fibreglass bass driver have a rubber surround and a powerful magnet system that guarantees good bass control and the silk dome tweeter provides detailed highs. Grilles are included. External in-line crossovers with 12dB slope for the tweeter and 6 dB for bass and midrange.

Woofer size 6″ x 9″ (165 x 236 mm
Tweeter 25 mm (1″) tweeter, 45 mm (2″) midrange
Power handling capacity 80 W RMS / 120 W max / 200 W peak power
Impedance 4 ohm
Frequency range 50 – 20.000 Hz
Sensitivity 89,3 dB (1W/1m)

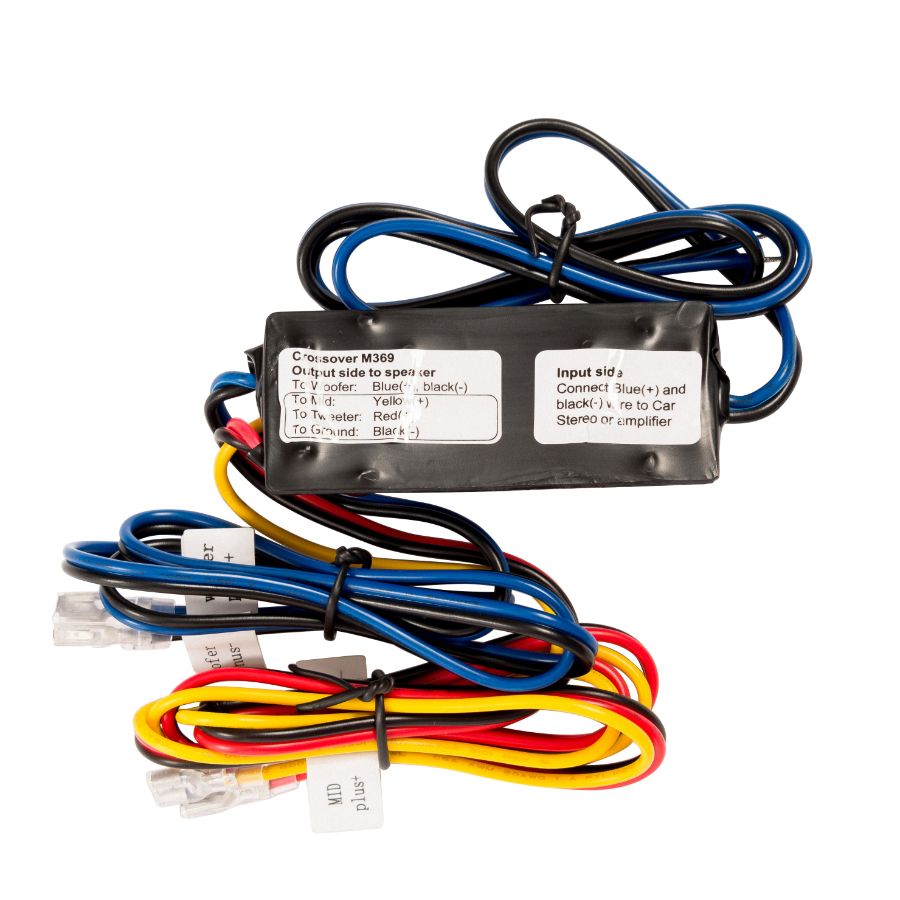

Crossover External filter with 12 and 6 dB slope
Outer diameter of woofer 165 x 236 mm

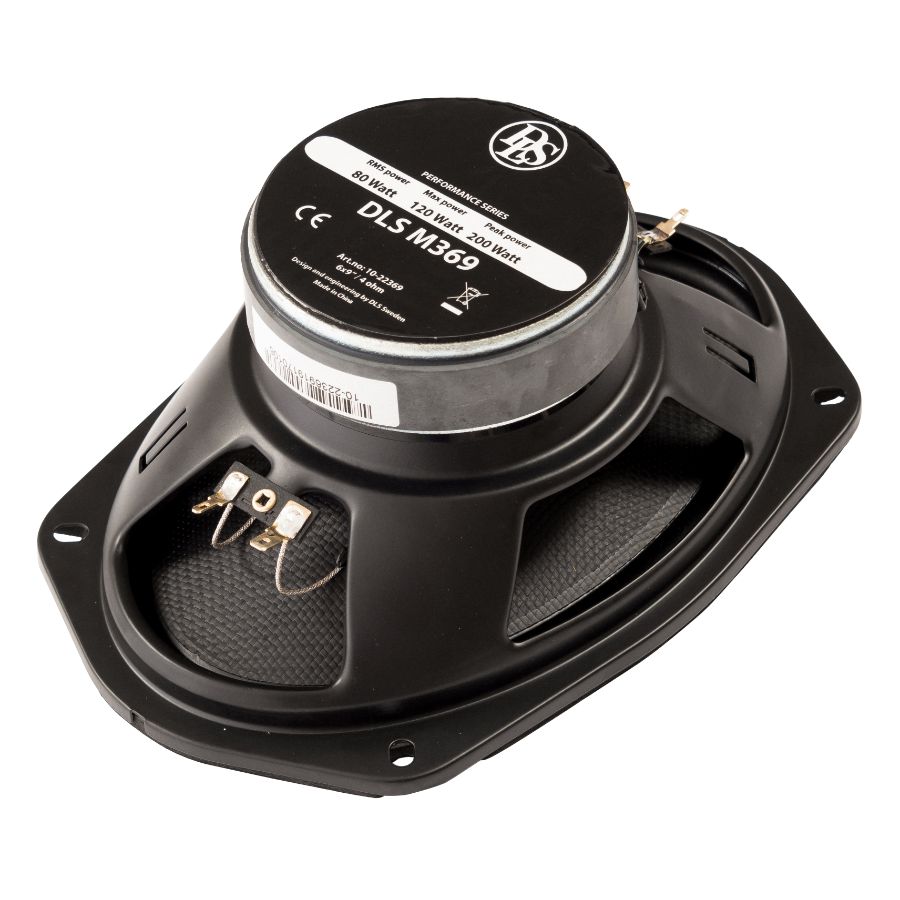

Magnet size 100 mm (3,94″)
Cone material Woven glass fibre with rubber surround
Mounting depth 86 mm ( 3,38″)
Mounting hole 155 x 221 mm (6,1 x 8,7″)
Size of filter box External cable filter
