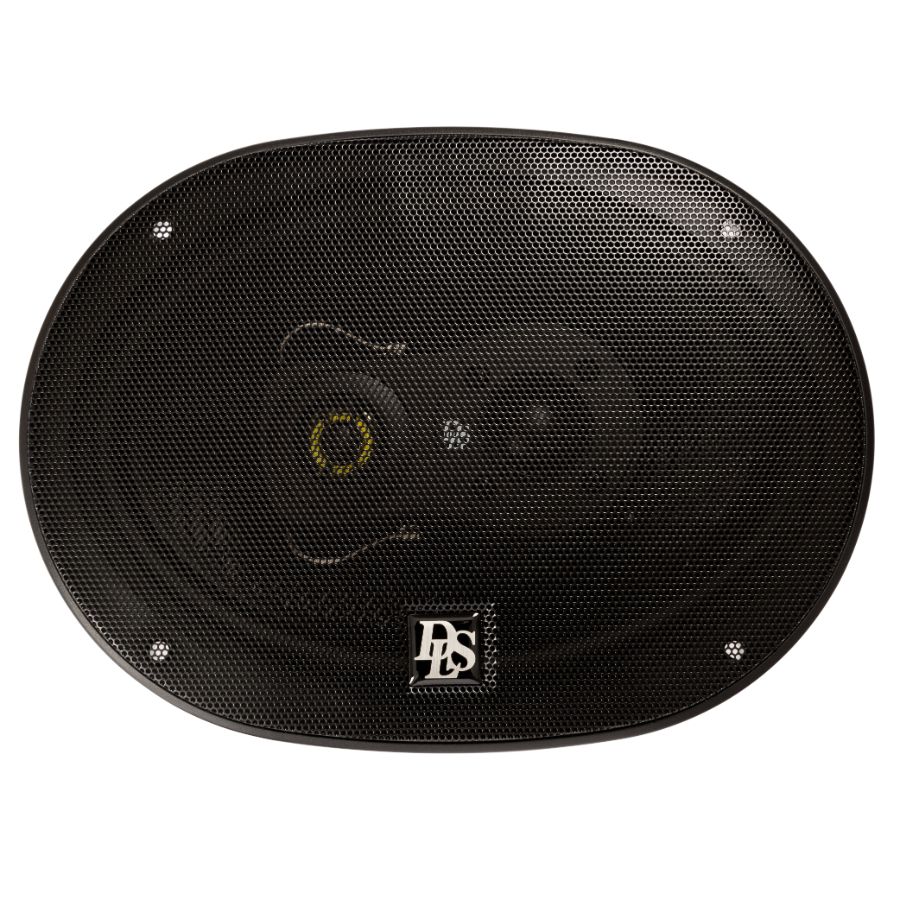

M3710i

“Probably the best 6×9” available”

The classic car dream speaker; 7×10” but drops in 6×9” cut-out and plays EXTREMELY GOOD!

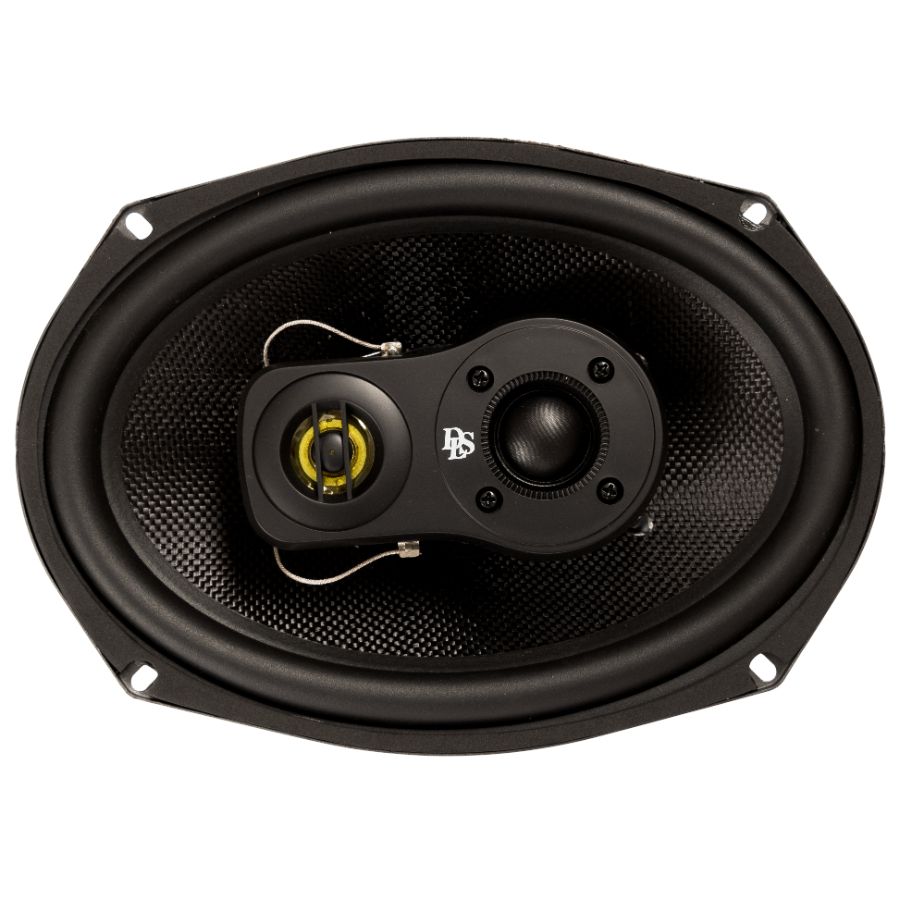

Oversized motor structure with fibreglass cone and rubber surround provides very high power handling, 120W RMS – can be used with big Amps! The 25mm silk dome & 20 mm mylar tweeter plays with high clarity due to high quality component external crossover.

Woofer size 7″ x 10″ (180 x 250 mm
Tweeter 20 mm (0,8″) tweeter, 25 mm (1″) midrange
Power handling capacity 120 W RMS / 200 W max / 300 W peak power
Impedance 4 ohm
Frequency range 30 – 20.000 Hz
Sensitivity 90 dB (1W/1m)

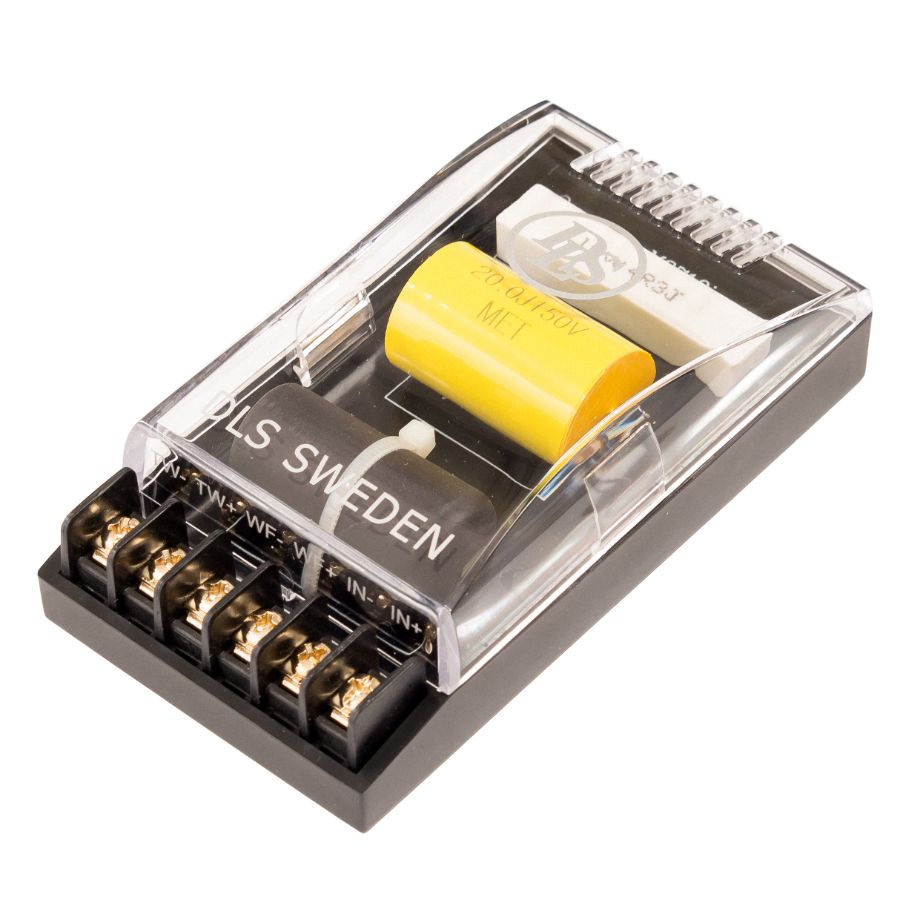

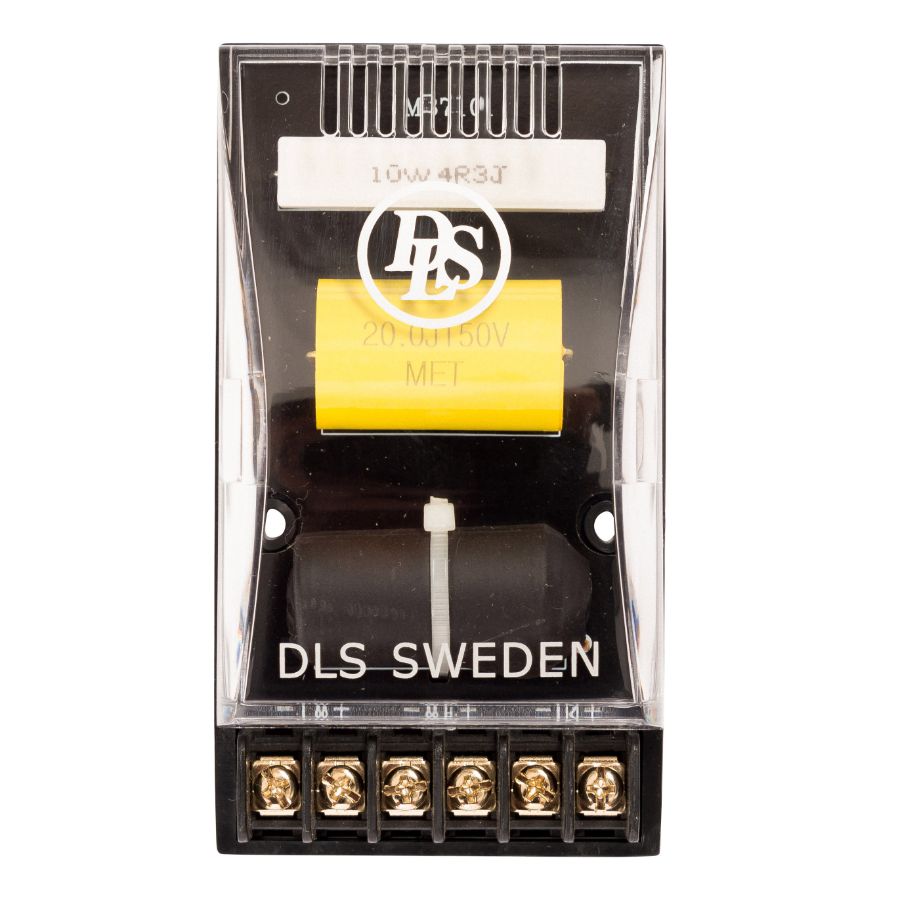

Crossover External woofer filter with 6 dB slope
Outer diameter of woofer 180 x 250 mm

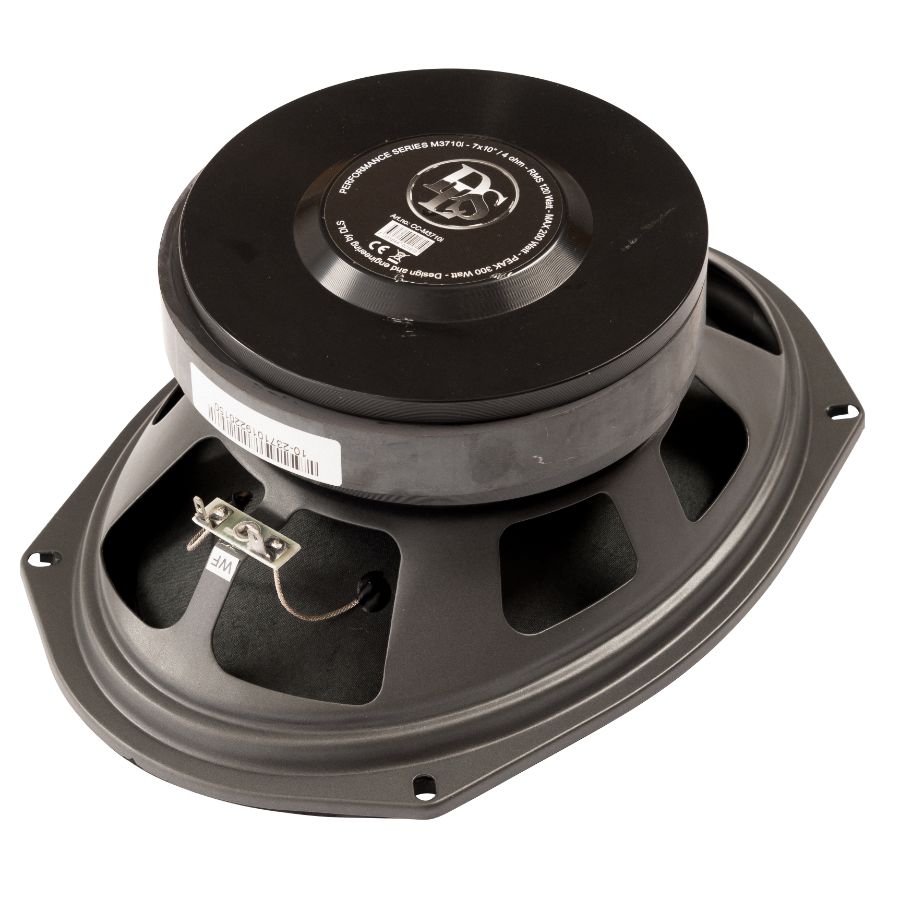

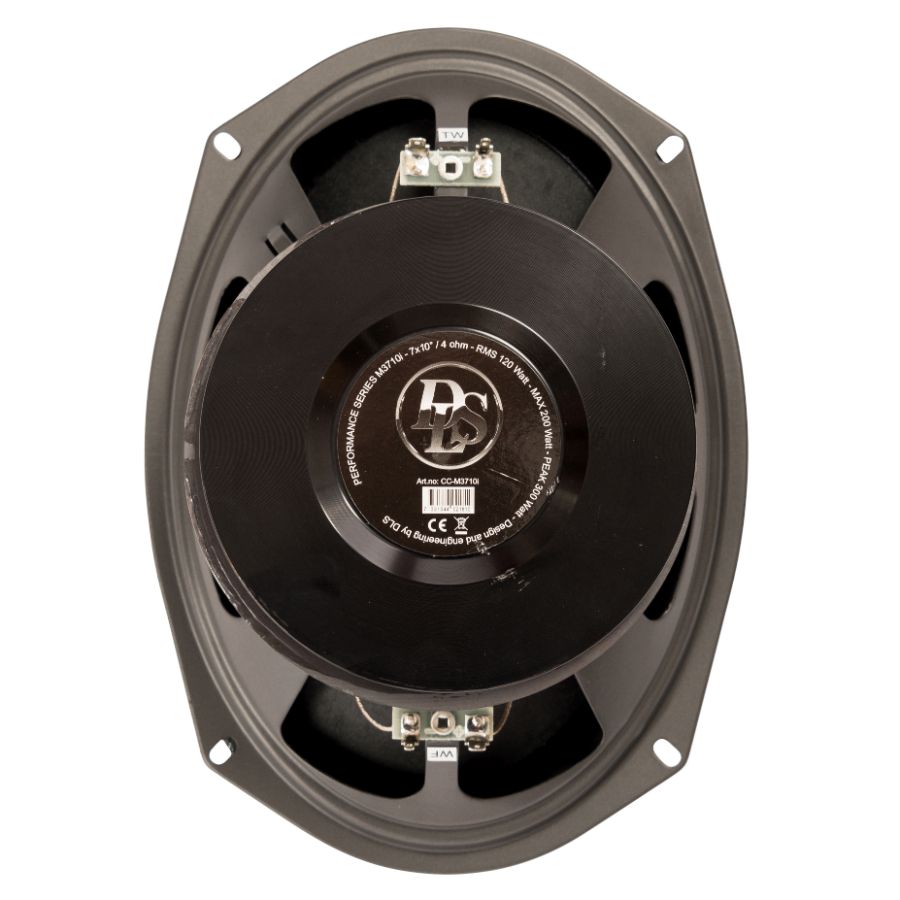

Magnet size 138 mm (5,4″)
Cone material Woven glass fibre with rubber surround
Mounting depth 95 mm ( 3,75″)
Mounting hole 170 x 240 mm (6,7 x 9,45″)
Size of filter box Filter box L x W x H 120 x 65 x 32 mm
