M526i

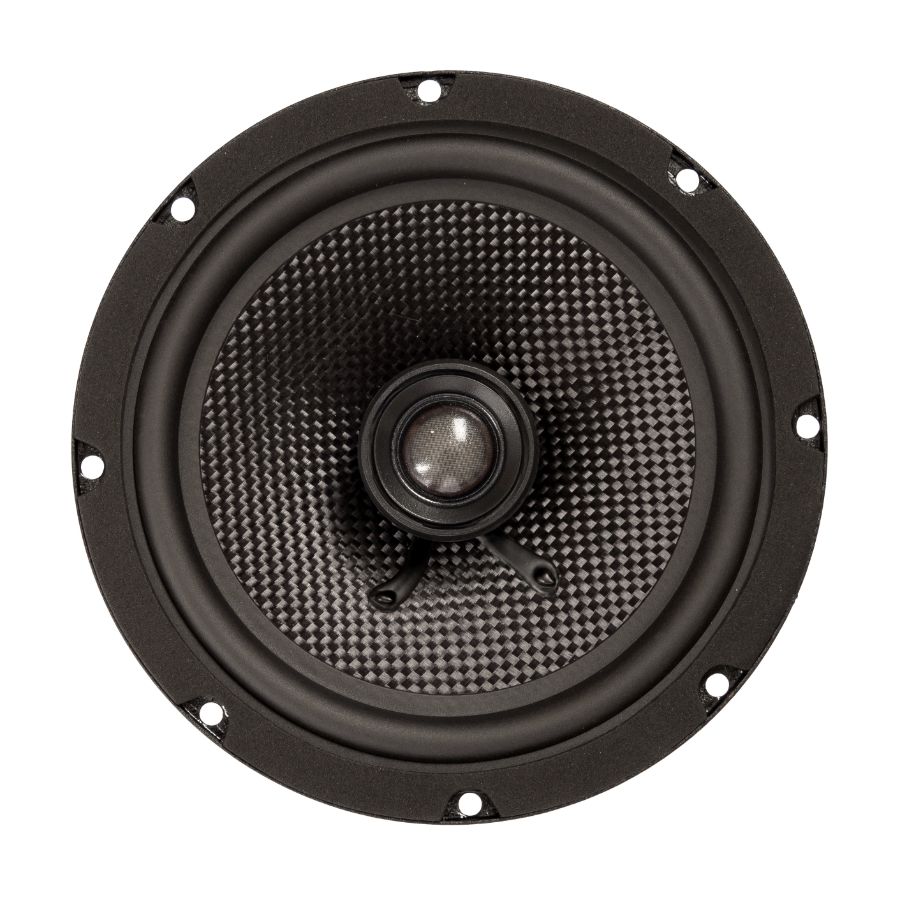

16cm (6,5”) slim basket design, Hybrid magnet, woven fibreglass cone, 20mm silk dome combined with high quality external crossover including tweeter level select makes this a superb coaxial for upgrading.

Woofer size 16,5 cm (6,5″)
Tweeter 20 mm (0,8″) silk dome
Power handling capacity 50 W RMS / 75 W max, 150 W peak power
Impedance 4 ohm
Frequency range 60 – 20.000 Hz
Sensitivity 86 dB (1W/1m)

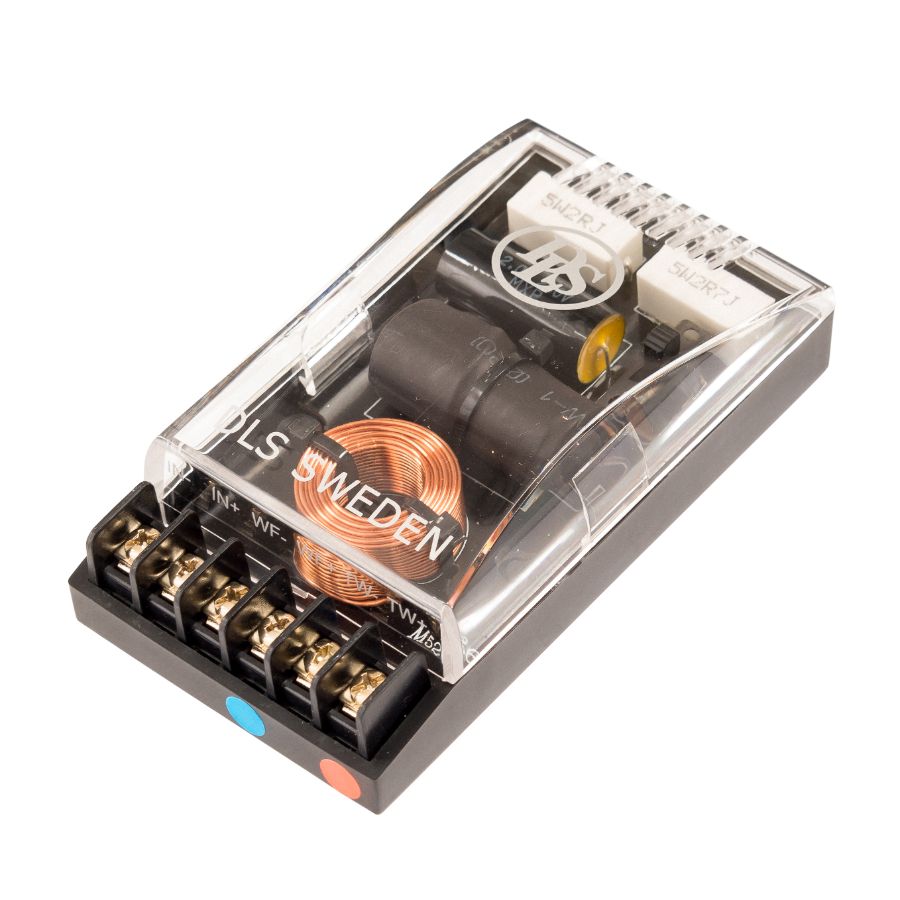

Crossover Box filter with 6/12 dB slope (LP/HP)
Outer diameter of woofer 165 mm (6,5″)
Cone material Wowen fibre glass and rubber surround
Magnet size 70 mm (2,75″)
Mounting depth 43 mm ( 1,7″)
Mounting hole 146 mm (5,75″)
Size of filter box 120 x 66 x 33 mm ( 4,72 x 2,6 x 1,3″)

Download Manual
