RC3

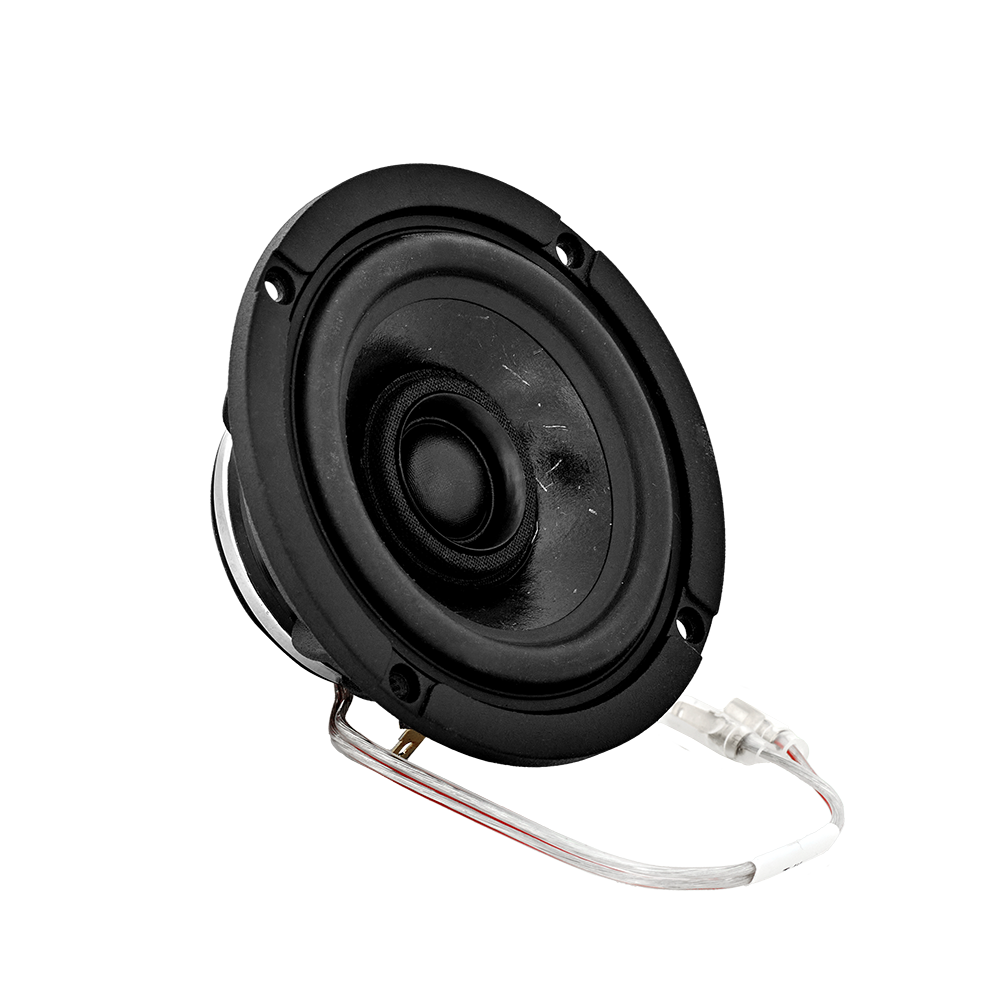

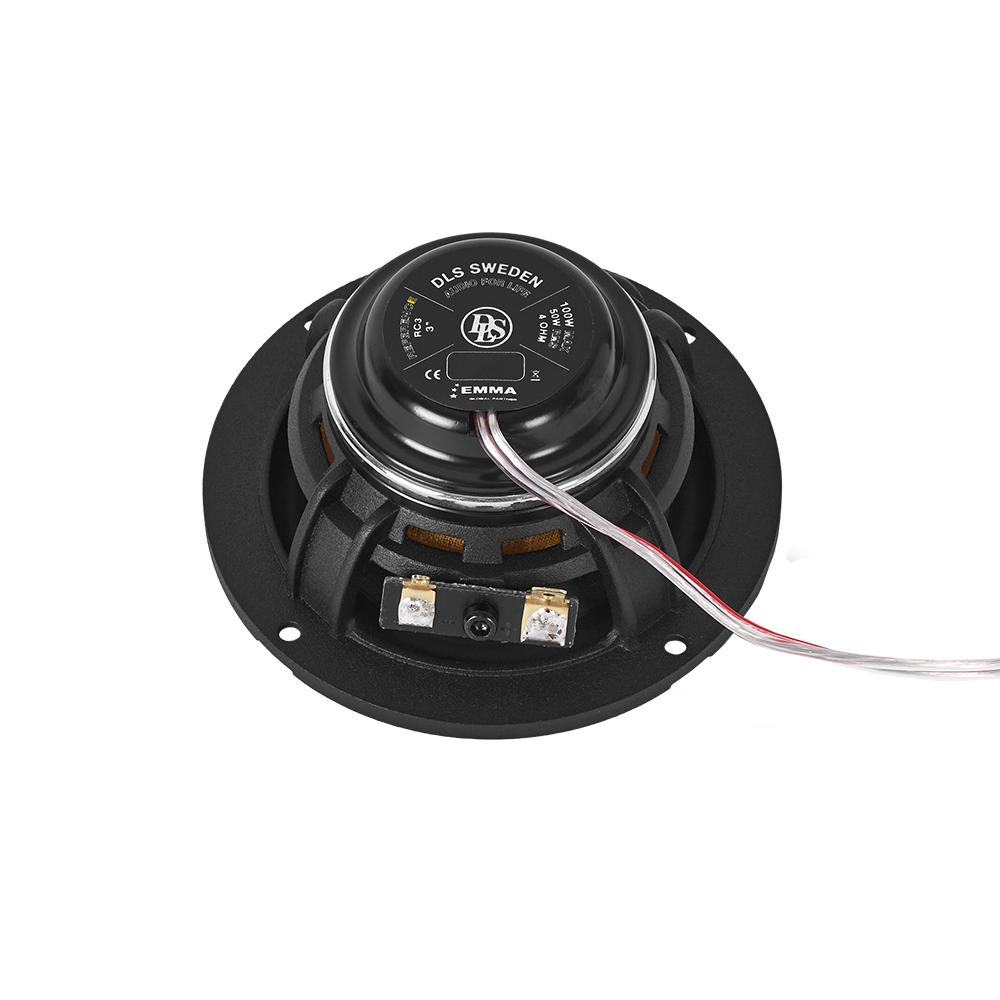

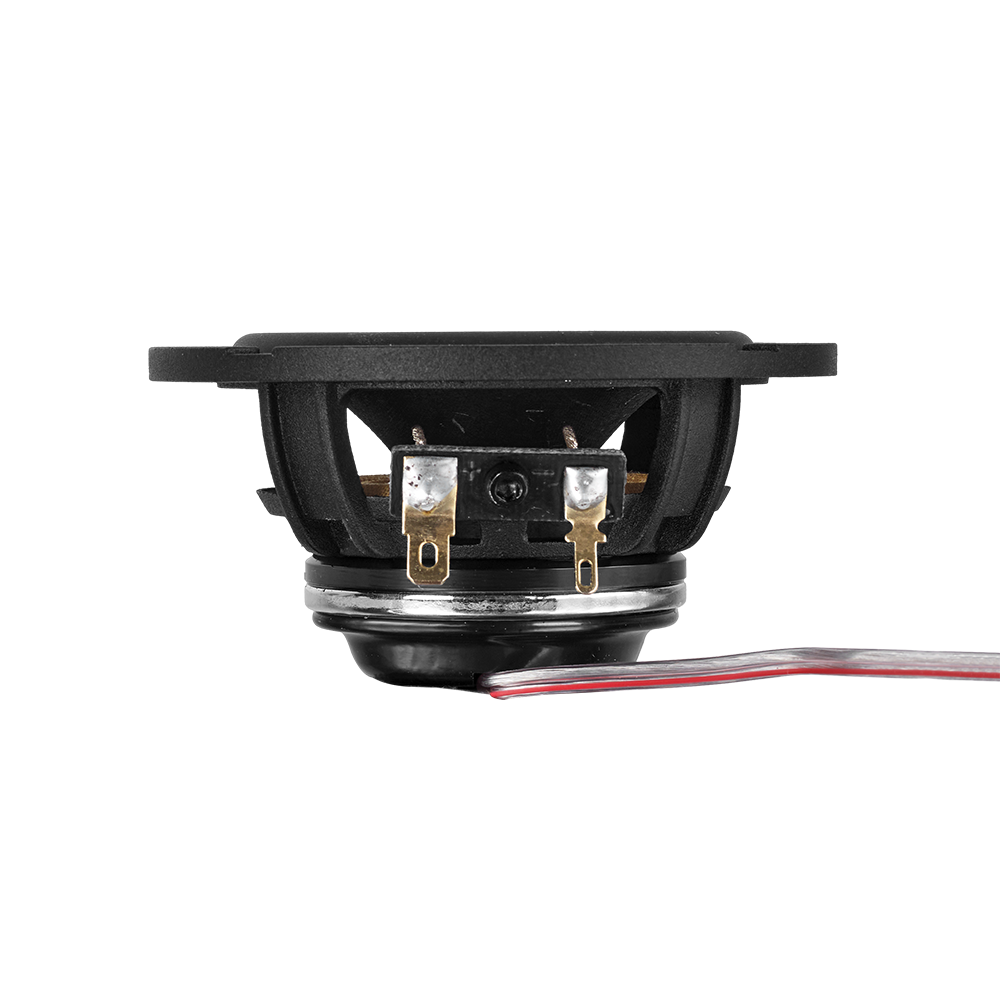

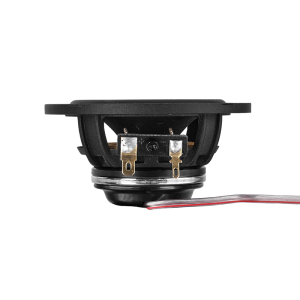

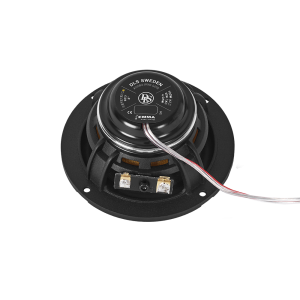

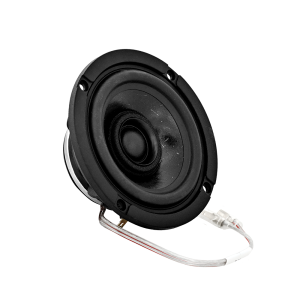

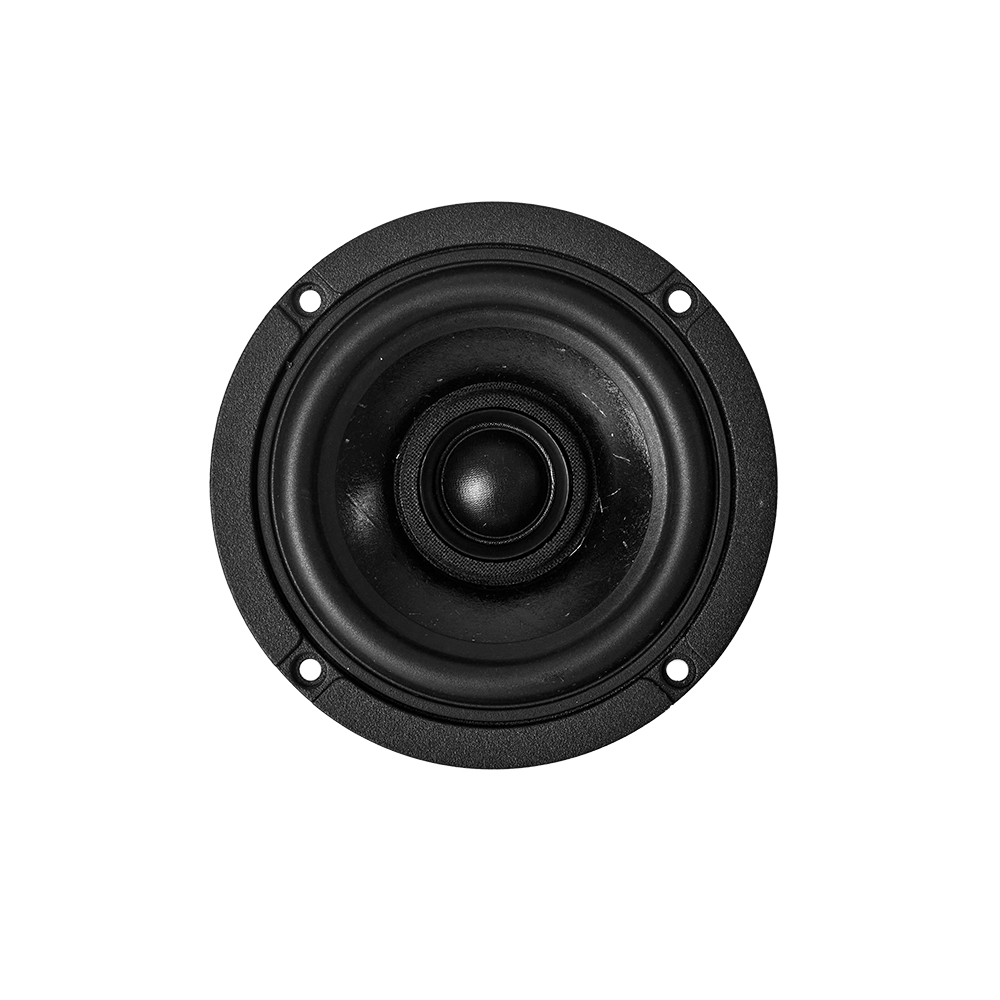

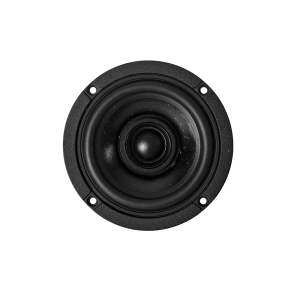

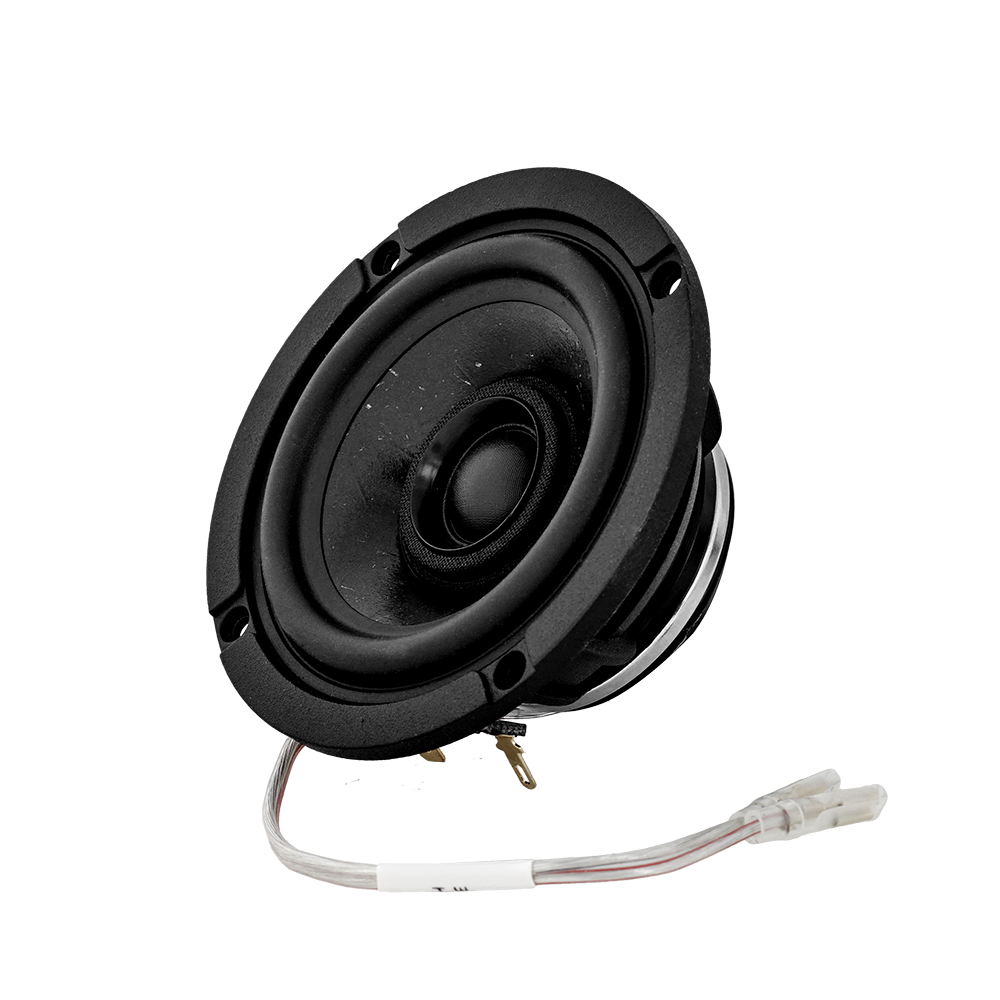

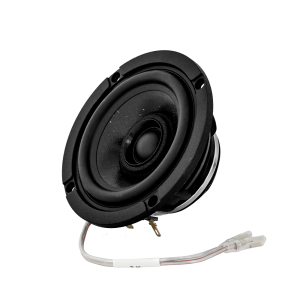

A 3” coaxial, with a coated wood fiber cone, delivering exceptional sound. Crafted with care, blending superior design and acoustic excellence.

Specifications

Woofer	3" / 70mm
Power RMS	50W
Power MAX	100W
Impedance	4 Ohm
Freq.range	100 – 23 000 Hz
Sensitivity	86.1 dB
Outer diameter	90mm
Cone material	Coated wood fibre
Magnet size	50mm
Mounting depth	35mm
Mounting hole	75mm

Description

The Reference series is developed for real music lovers. Filled with innovative solutions, delivering a warm and embracing sound.

• Reference classic 2-way coaxial
• Natural voicing 3” woofer with coated wood fibre cone
• Warm character 0.5” soft silk dome tweeter
• Nomex® / NBR components for low distortion
• Copper shorting cap improves distortion and
inductance performance
• Non-magnetic Kapton® / copper wire voice coil
• Optimized high grade neo magnet
• Ventilation solution with increased heat transfer
• Anti-resonating aluminium basket

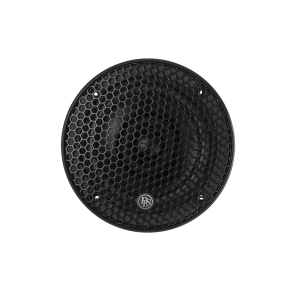

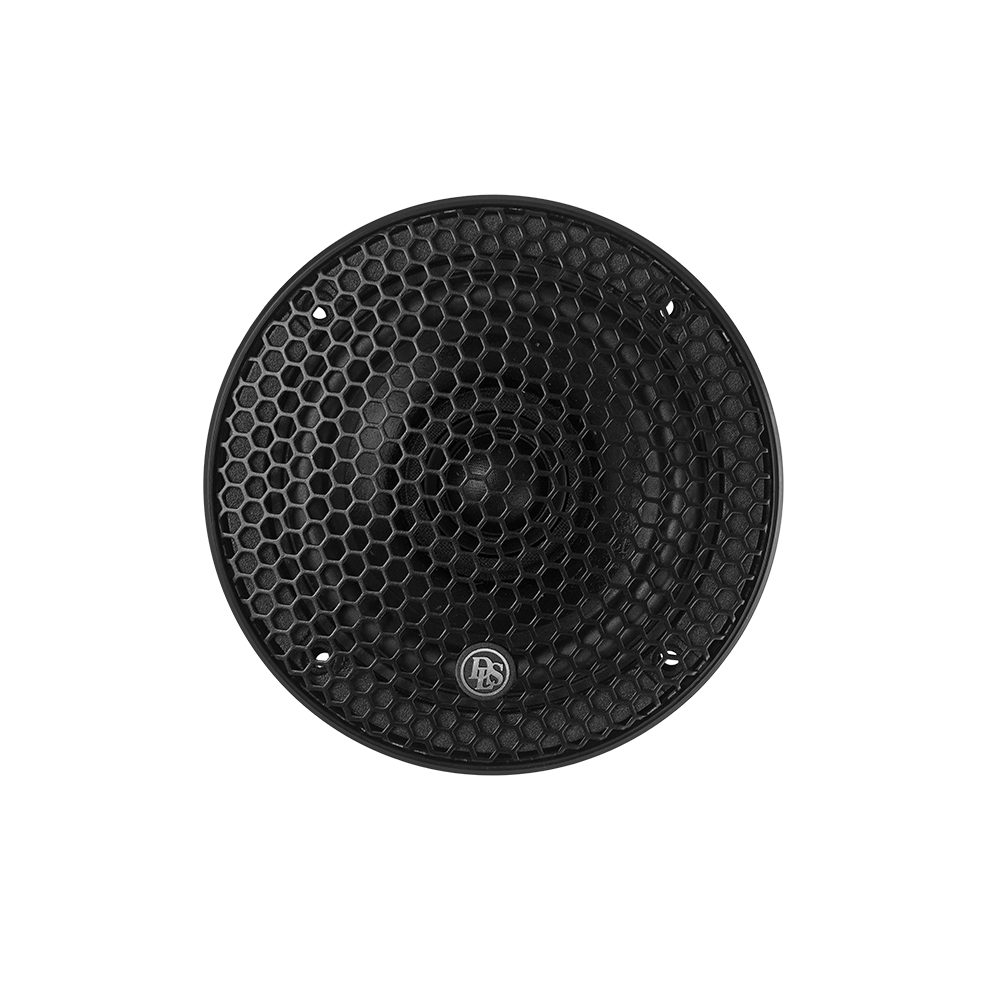

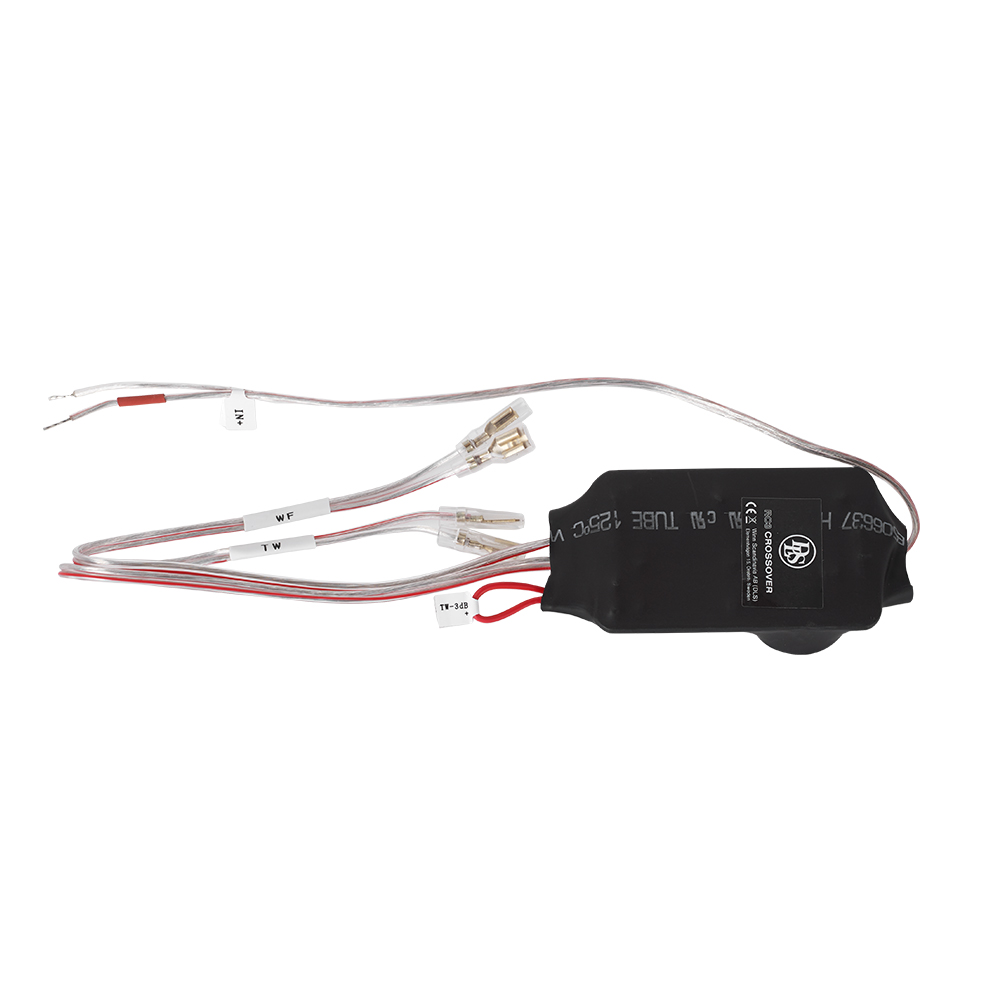

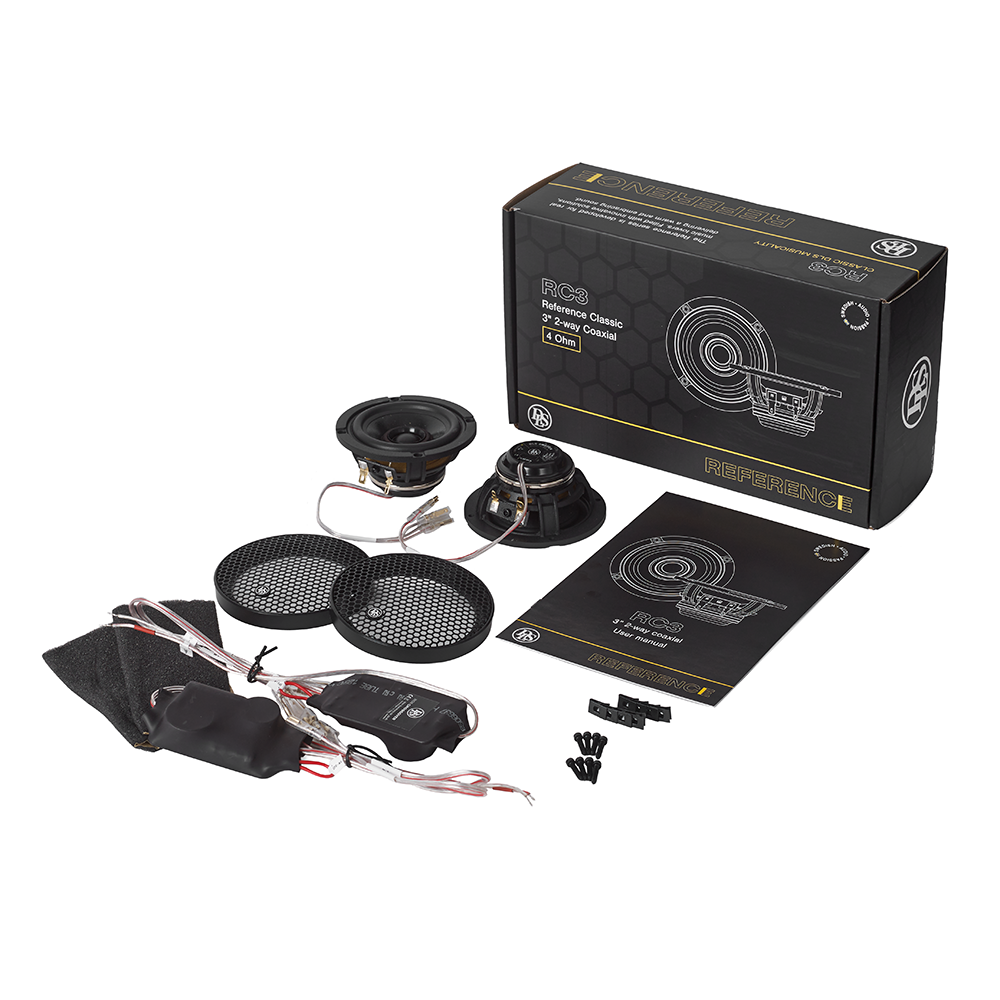

• Crossovers & Hex grills included

Specifications

Woofer	3" / 70mm
Power RMS	50W
Power MAX	100W
Impedance	4 Ohm
Freq.range	100 – 23 000 Hz
Sensitivity	86.1 dB
Outer diameter	90mm
Cone material	Coated wood fibre
Magnet size	50mm
Mounting depth	35mm
Mounting hole	75mm

Download manual

Download

Download specification and datasheet

Download
