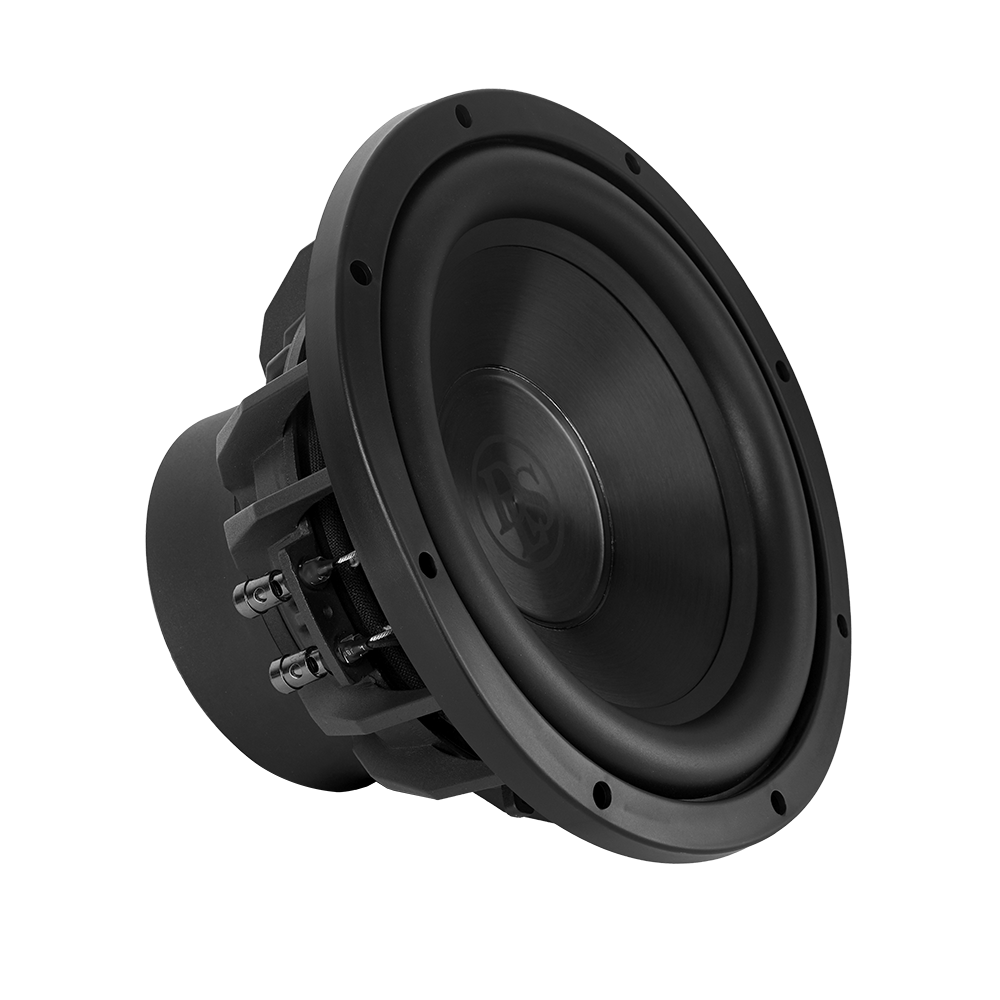

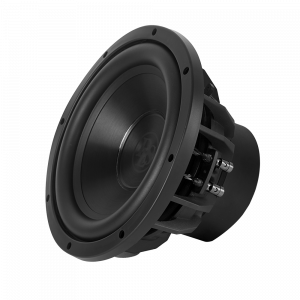

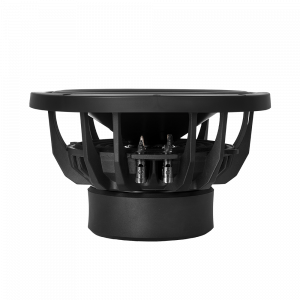

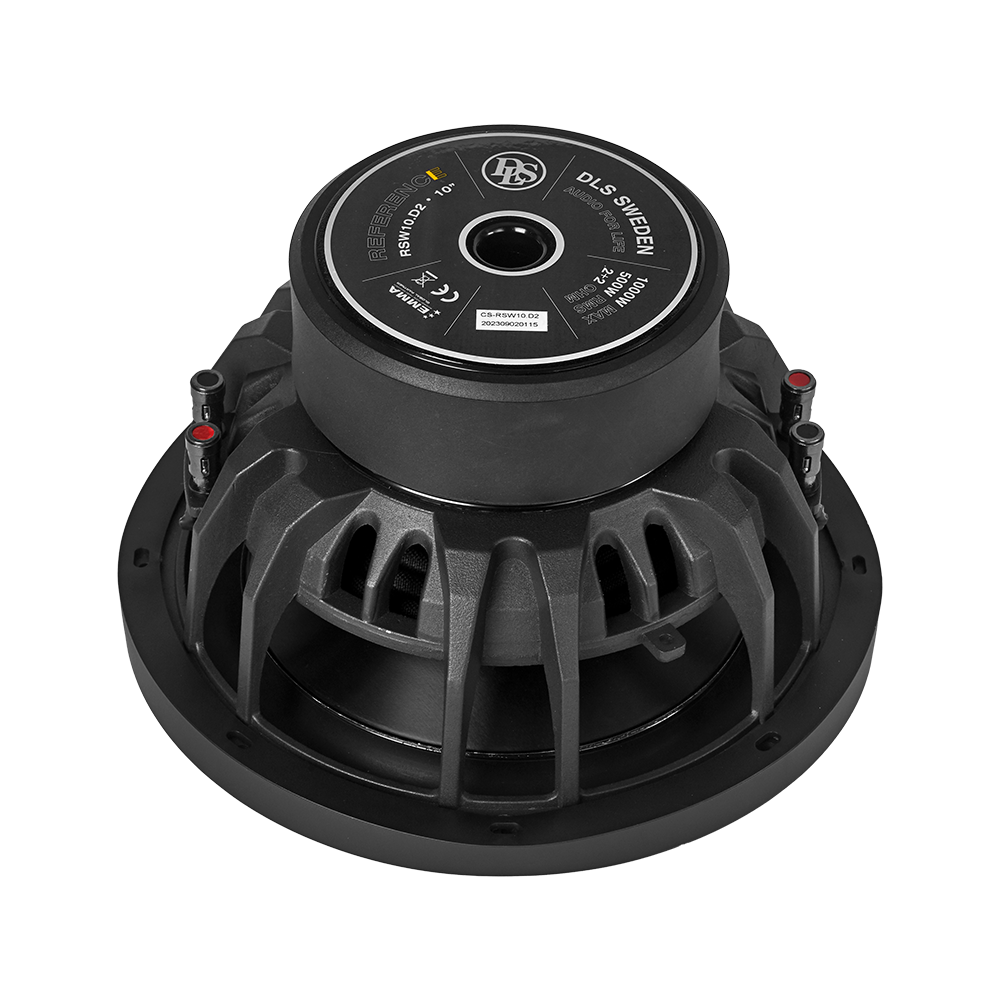

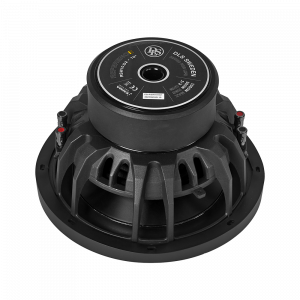

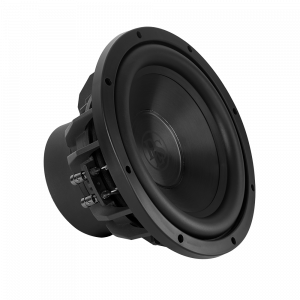

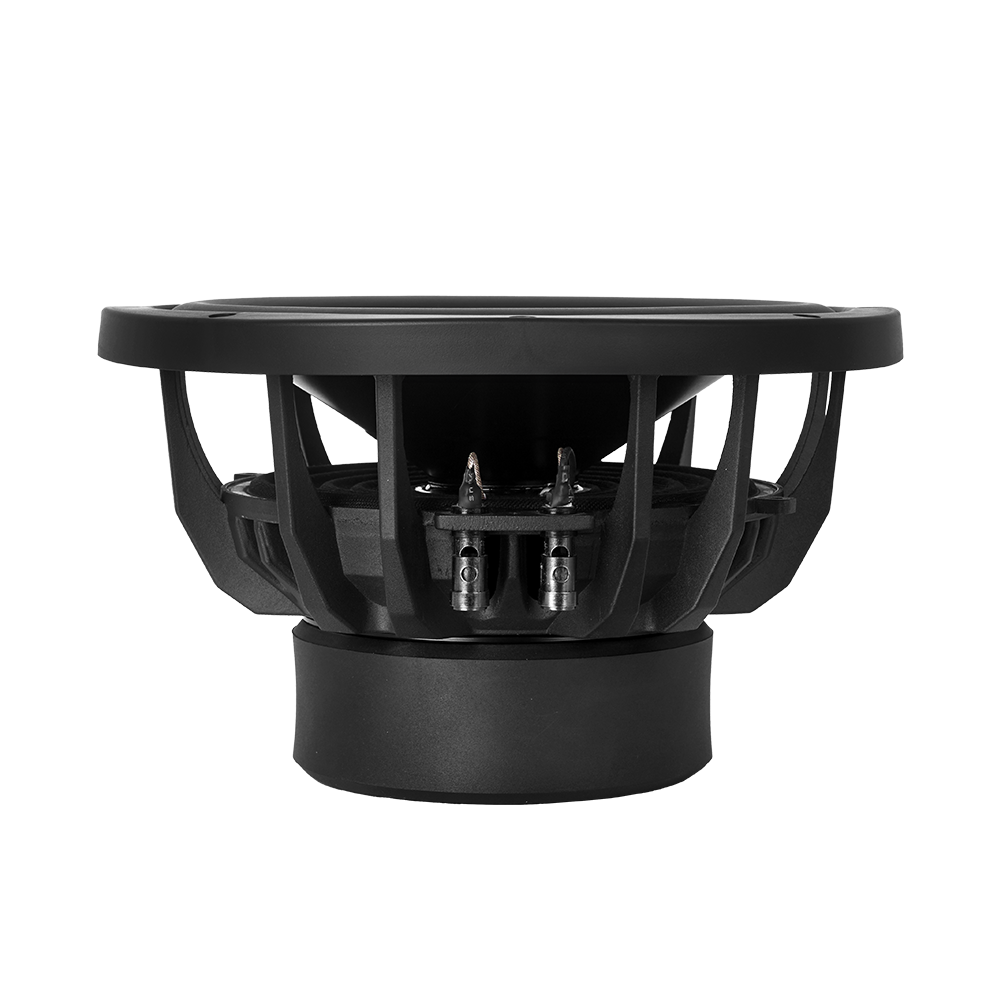

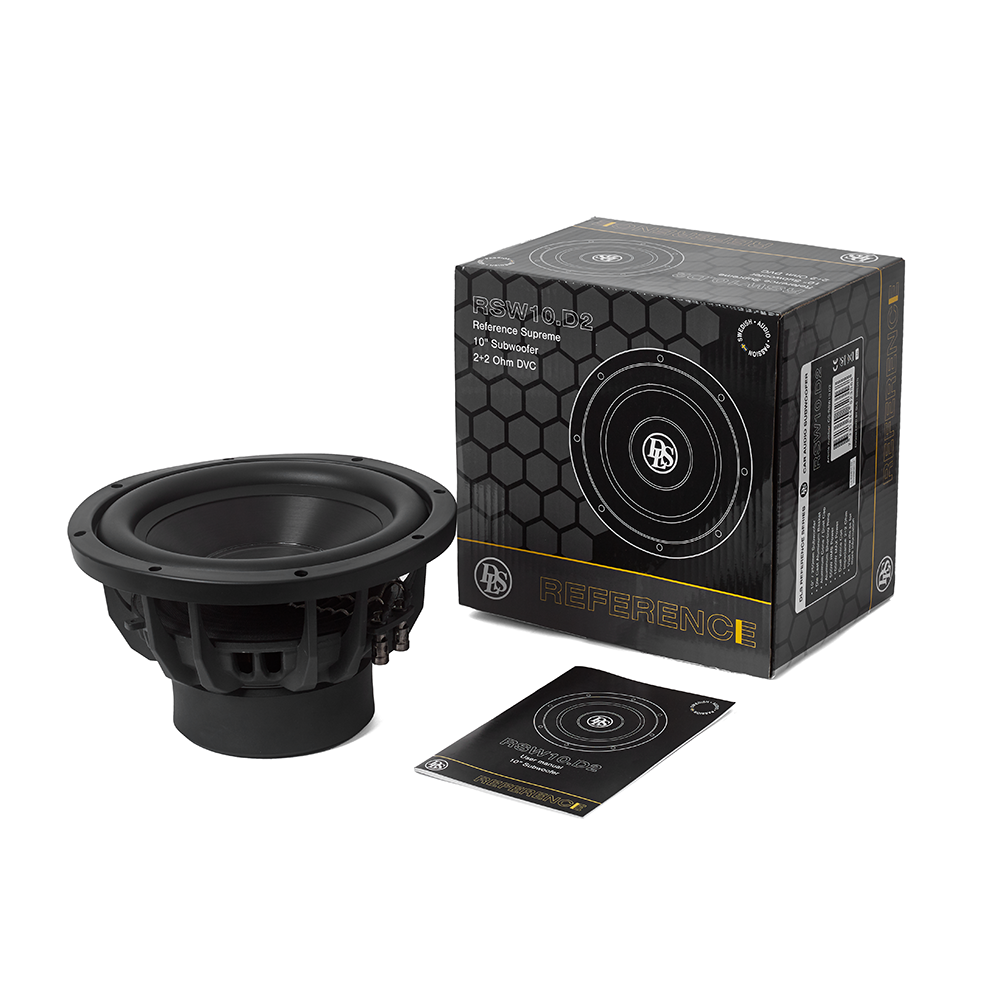

DLS RSW10.D2

RSW10D2

DLS RSW10.D2

RSW10D2

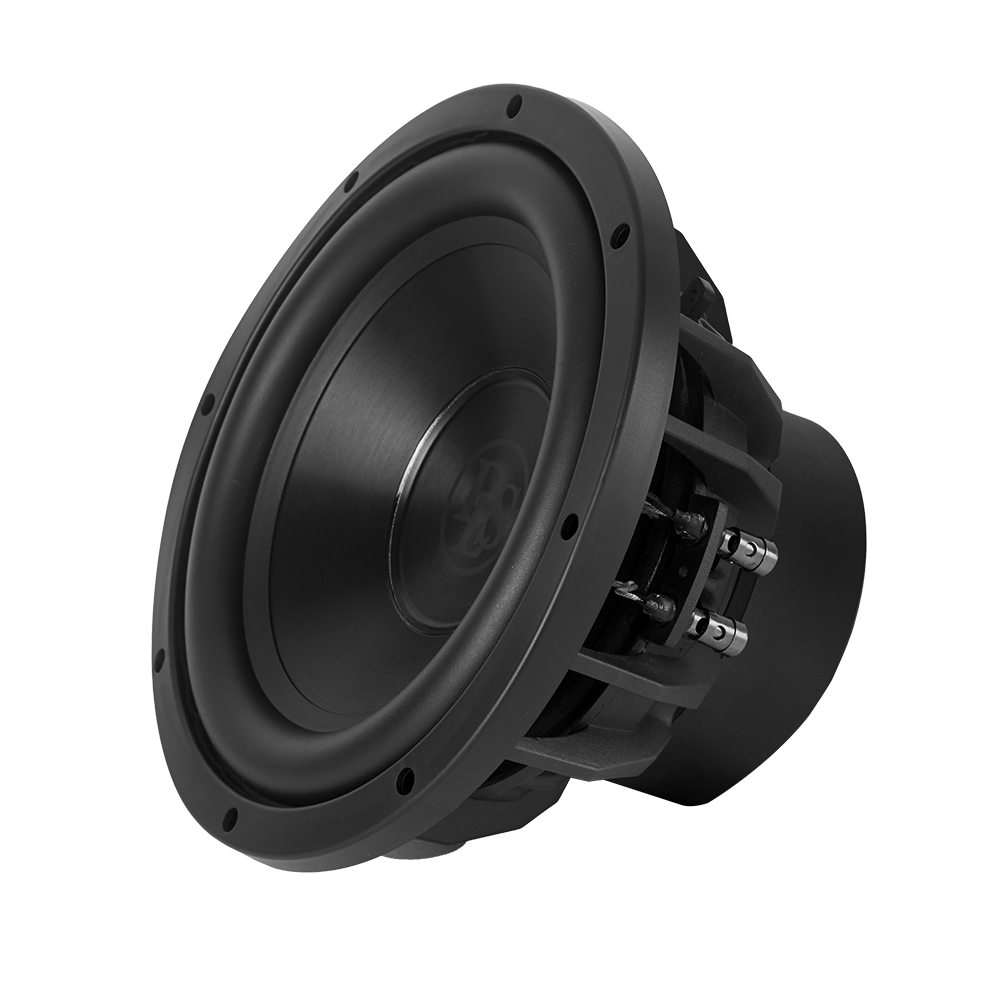

The DLS Reference Supreme RSW10.D2 delivers an impressive and musical 10-inch bass experience that surpasses all expectations.

Specifications

Size	10"/250mm
Impedance	2+2 Ohm
Power RMS	500W
Power MAX	1000W
Sensitivity	84 dB
Voice coil size	2"/51mm
Voice coil material	4-layer copper/TIL former
Cone material	Aluminium
Magnet	2x40oz Ferrite Dual stacked
Freq.range	20 – 300 Hz
Weight	7.6kg

Description

The Reference series is developed for real music lovers. Filled with innovative solutions, delivering a warm and embracing sound.

•Reference sound quality 10” subwoofer optimized for small sealed enclosures.

•Black anodized aluminium cone, die cast aluminum basket and a dual stacked premium ferrite magnet motor in perfect balance.

•Highly conductive aluminium shorting ring brings reduced inductance and distortion for a very detailed sub-bass reproduction.

•Dual 2 Ohm copper wire voice coils on non-magnetic 2” TIL former for best musicality.

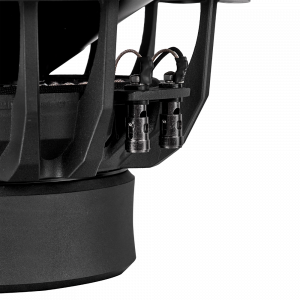

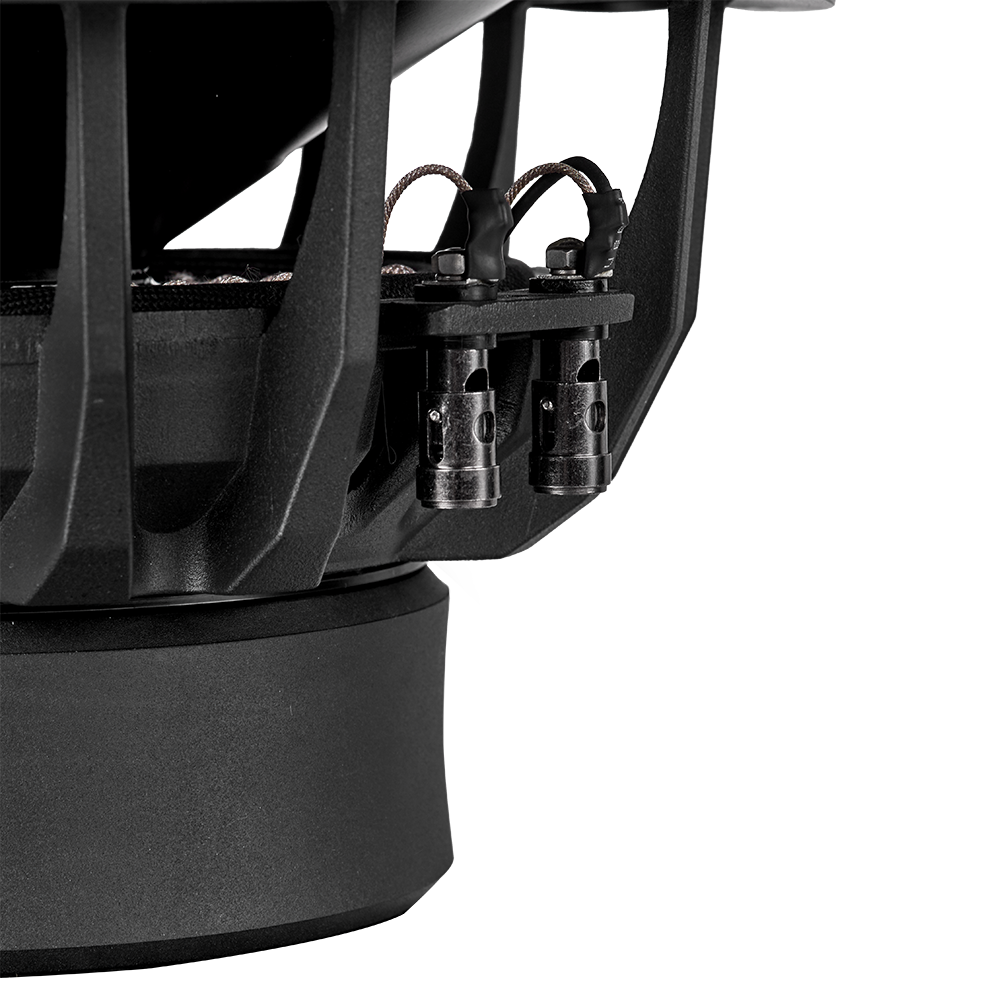

•Die-cast basket with full ventilation and heavy duty push terminals for large size speaker wires.

Parameters:

Fs: 28 Hz

Re: 4.4 (2.2+2.2) Ohm

Qms: 5.10

Qes: 0.55

Qts: 0.52

Cms: 0.19 mm/N

Mms: 168.6g

Bl: 15.5

Vas: 35.2L

SD: 358.7 cm²

Xmax: ±9 mm

Vd: 1.7 L

Specifications

Size	10"/250mm
Impedance	2+2 Ohm
Power RMS	500W
Power MAX	1000W
Sensitivity	84 dB
Voice coil size	2"/51mm
Voice coil material	4-layer copper/TIL former
Cone material	Aluminium
Magnet	2x40oz Ferrite Dual stacked
Freq.range	20 – 300 Hz
Weight	7.6kg

Download manual

Download

Download Specification and Datasheet

Download
