ACW10

ACW10

ACW10

ACW10

Subwoofer for installation under your seat. Super rigid flat low resonance aluminium woofer, tuning bassoptimize circuit for various cars, 200W RMS class D amp, HLC with Autostart

Specifications

Size

10"/250mm

Power RMS

200W

Power MAX

450W

Freq.range

30 – 150 Hz

Subsonic Filter

30 Hz

Low Pass Filter

50 – 150 Hz

Dimension (W x D x H)

245 x 345 x 65 mm

Description

When DLS set out to develop an Active Subwoofer we first made extensive performance tests of the leading brand products with the focus to make ours play deeper and more natural than all the rest. This completely goes along with the DLS philosophy – we play better! One of the key factors is our bass optimize control that allow you to tune the ACW10 for ultralow bass and the ultimate extra kick.

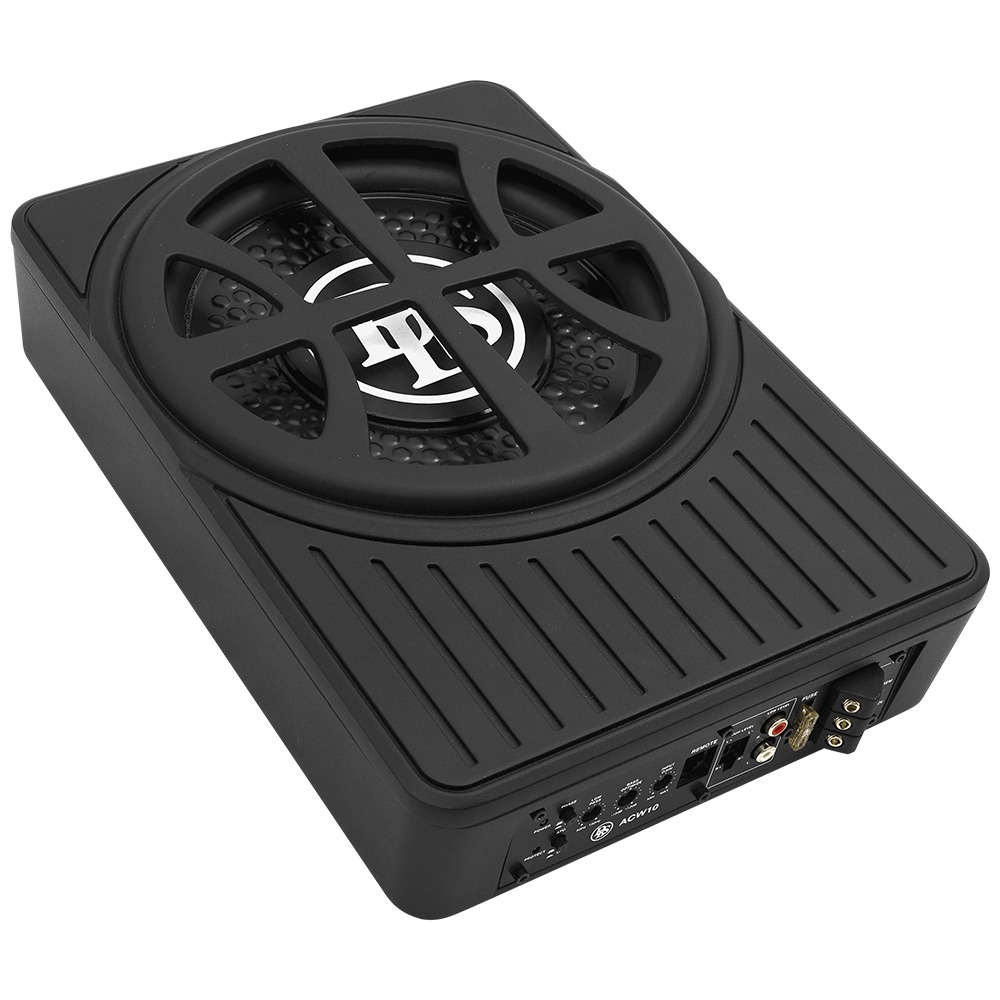

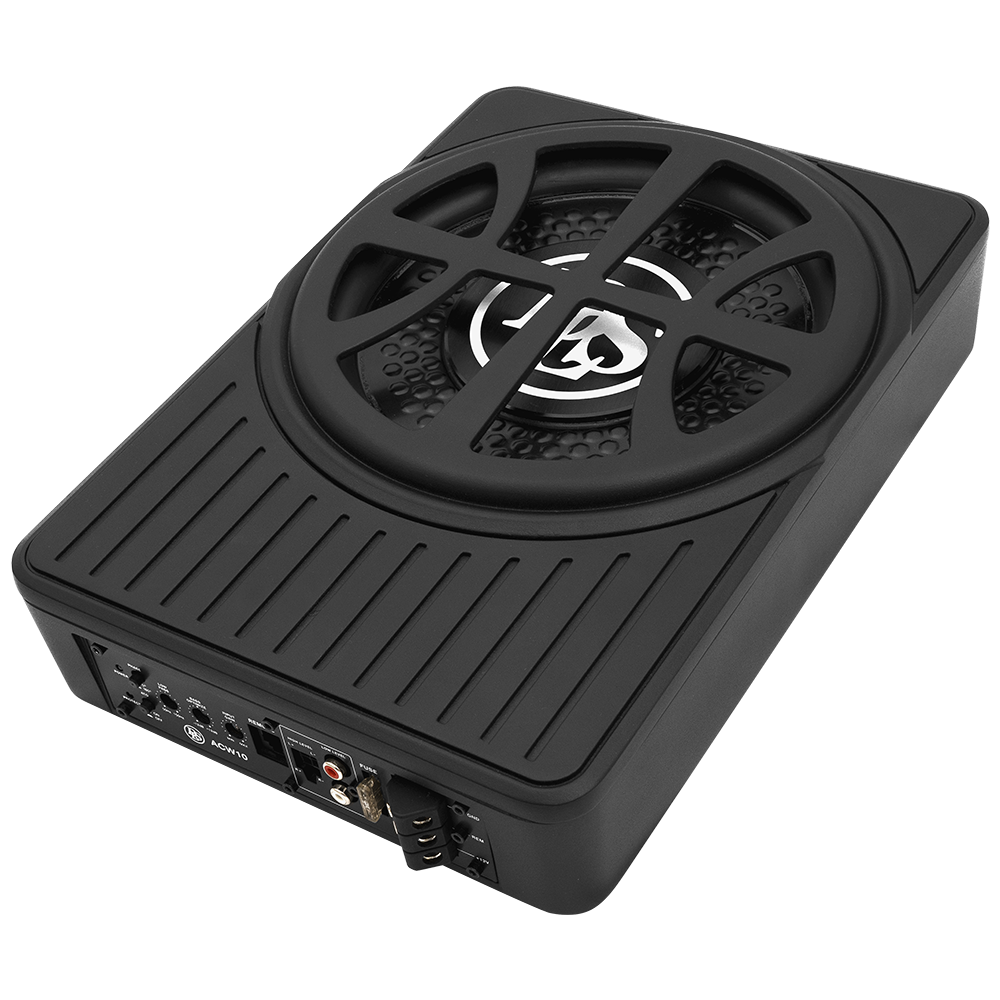

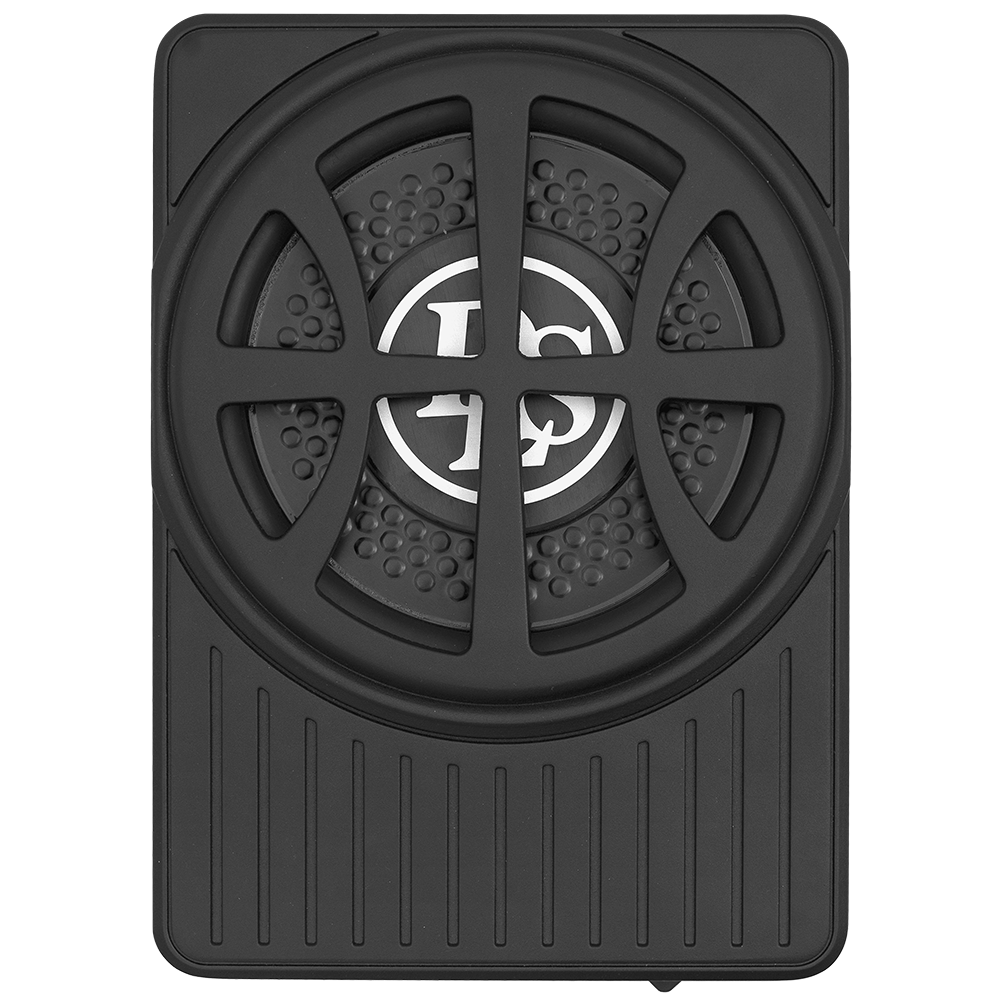

DLS ACW10 boast a super rigid profiled 10”driver with a full flow DLS grille in a sealed diecast aluminium enclosure with heat dissipation grooves for the built in 200 Watt RMS class D amplifier.

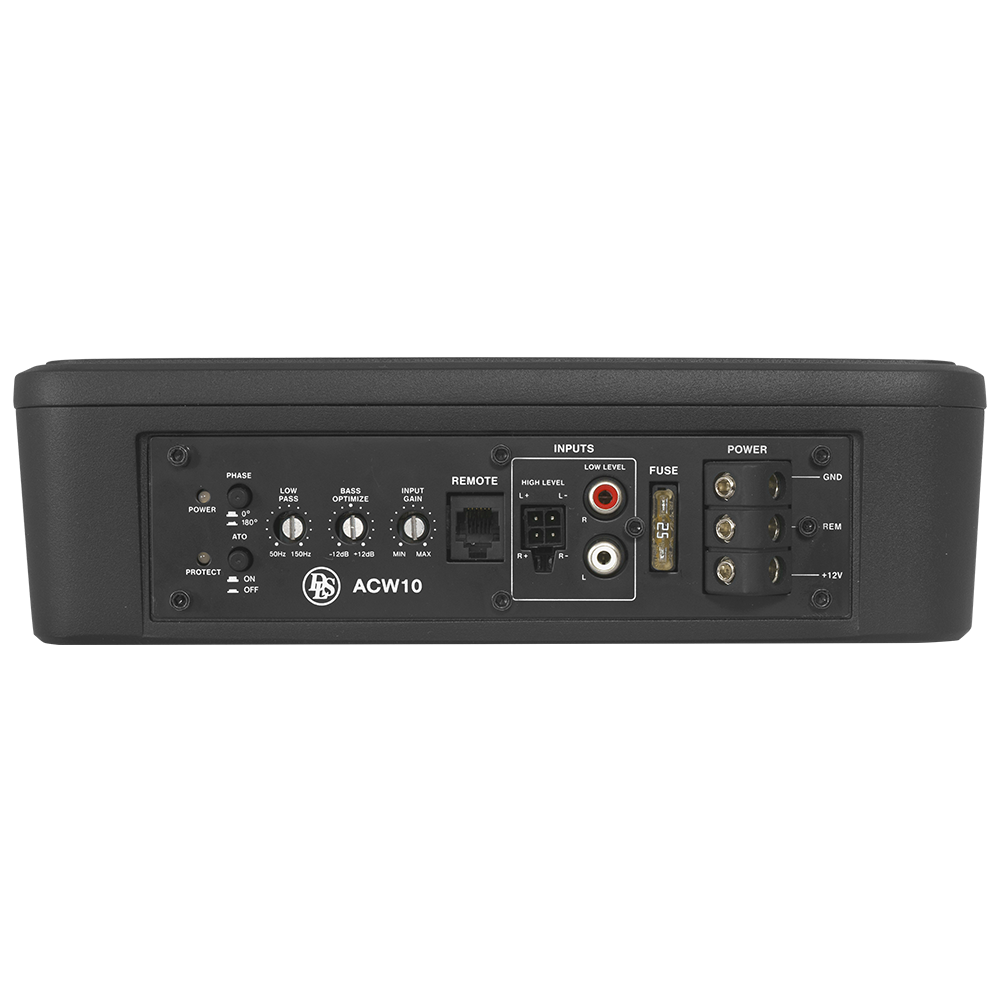

Now you can experience real bass performance even if the space is very limited, and you can fine tune the level by the remote EBC right from the dash! Easy to connect by high level to any OEM stereo and with AutoStart or by RCA line level input, variable Lowpass filter and 0/180 degree phase switch.



Phase control for subwoofers 0/180 degrees variable

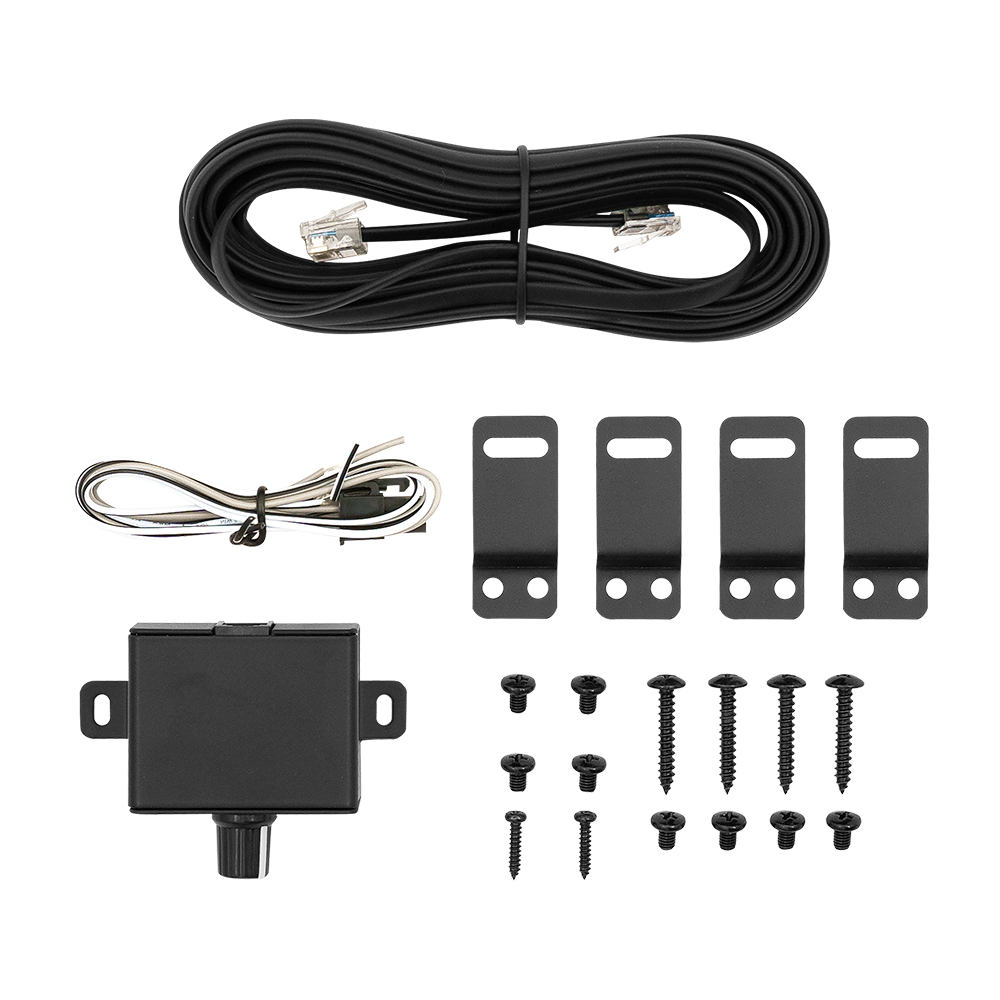

Remote bass level control Yes

Voltage 12 – 15 Volt DC

Fuses 1 x 25 A

High level input with auto start Yes

Specifications

Size

10"/250mm

Power RMS

200W

Power MAX

450W

Freq.range

30 – 150 Hz

Subsonic Filter

30 Hz

Low Pass Filter

50 – 150 Hz

Dimension (W x D x H)

245 x 345 x 65 mm

Download manual

Download

Download Specification and Datasheet

Download
