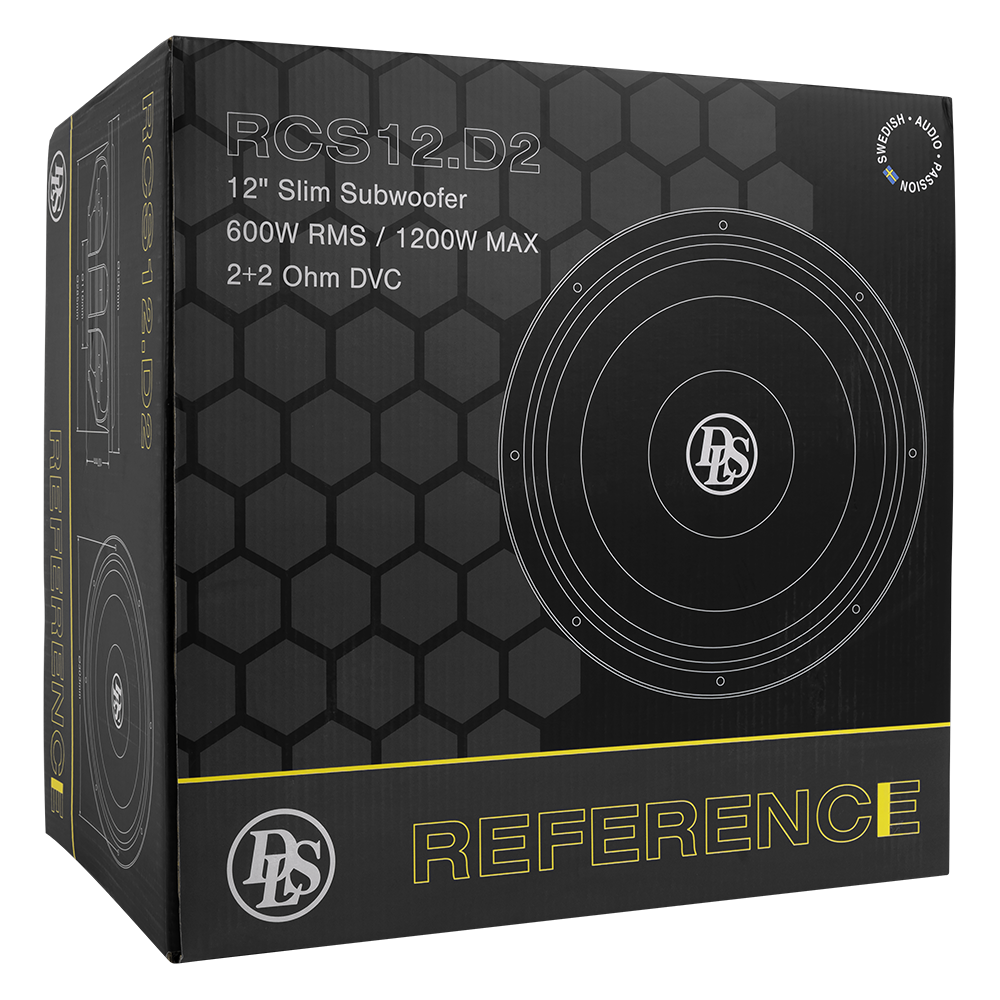

RCS12.D2

RCS12D2

RCS12.D2

RCS12D2

Impressive 12″ subwoofer engineered with great performance in a super slim construction

Specifications

Size	12"/300mm
Impedance	2+2 Ohm
Power RMS	600W
Power MAX	1200W
Sensitivity	87,5 dB
Voice coil size	2.5"/63.5mm
Voice coil material	4-layer copper/TIL former
Cone material	Sandwich composite PP dust cap
Magnet	65 Oz Ferrite
Freq.range	25 – 500 Hz
Weight	7,1 kg

Description

Impressive subwoofer engineered with great performance in a super slim construction. The Reference series is developed for real music lovers. Filled with innovative solutions, delivering a warm and embracing sound.

•Slim subwoofer with an impressive mounting depth of 4”/10.7cm yet with output capability like normal sized subwoofer.

•Top of the line sandwich cone and aluminium basket delivers that accurate and distinct Reference sound quality. Suitable for small sealed enclosures.

•Dual 2 ohm copper wire voice coils on TIL former for best musicality. Versatile 1 or 4 Ohm configuration options.

Parameters:

Fs: 29 Hz

Re: 3.8 (1.9+1.9) Ohm

Qms: 5.601

Qes: 0.452

Qts: 0.418

Cms: 0.165 mm/N

Mms: 178.5g

Bl: 21.7

Vas: 67.2L

SD: 530.9 cm²

Xmax: ±11 mm

Vd: 0.84 L

Specifications

Size	12"/300mm
Impedance	2+2 Ohm
Power RMS	600W
Power MAX	1200W
Sensitivity	87,5 dB
Voice coil size	2.5"/63.5mm
Voice coil material	4-layer copper/TIL former
Cone material	Sandwich composite PP dust cap
Magnet	65 Oz Ferrite
Freq.range	25 – 500 Hz
Weight	7,1 kg

Download manual

Download

Download Specification and Datasheet

Download
